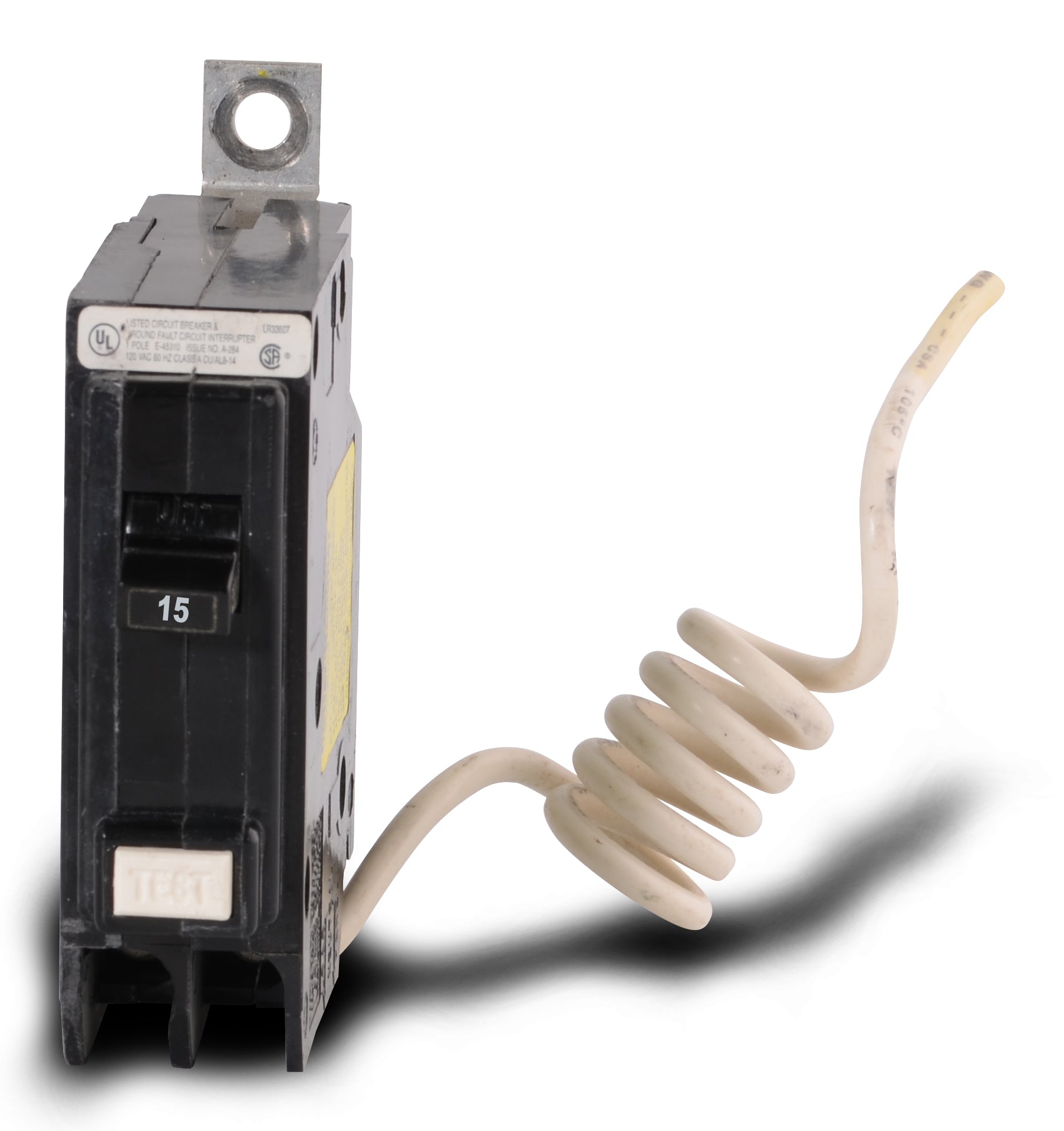

The Eaton QBHGF1015 is a 1 Pole molded case ground fault circuit breaker with a current rating of 15 Amps and a voltage rating of 120VAC. It has an interrupting rating of 22kAIC@120V. The QBHGF1015 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | QB |
| Amperage | 15 |
| Voltage | 120VAC |
| Poles | 1 |
| Phase | 1 |
| Interrupting Rating | 22kAIC@120V |
| Frame Type | BAB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Wire Gauge | 14 to 4 AWG |
| Standards | UL |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GFCI |
| Mpn | QBHGF1015 |
| Upc | 786679373156 |
