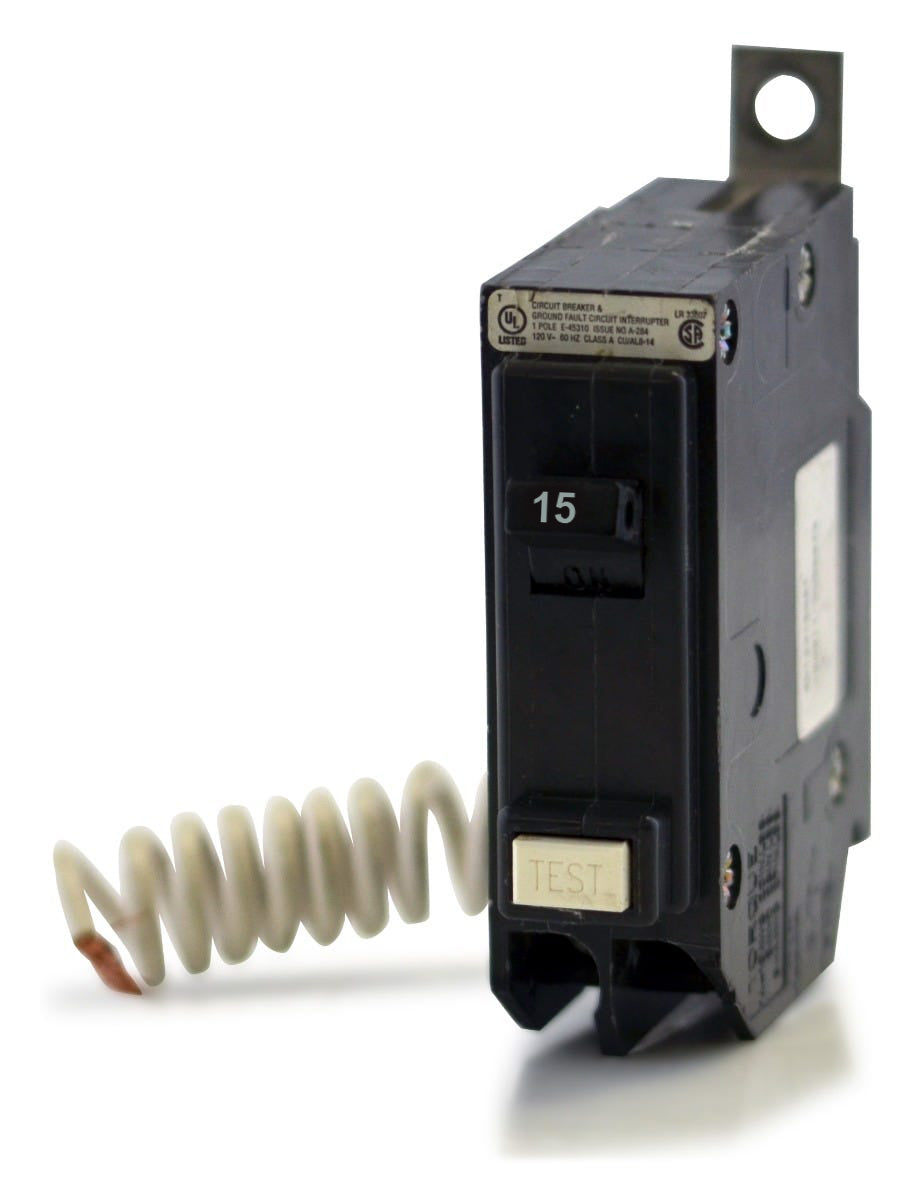

The Eaton QBHGFT1015 is a 1 Pole molded case ground fault circuit breaker with a current rating of 15 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 22kAIC. The QBHGFT1015 has a bolt-on mounting type and includes trip functions.
| Brand | Eaton |
|---|---|
| Series | QB |
| Amperage | 15 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 22kAIC |
| Frame Type | QBHGFT |
| Functions | Trip |
| Terminal Connection | Load side lug |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GFCI |
| Mpn | QBHGFT1015 |
| Upc | 786680131028 |
