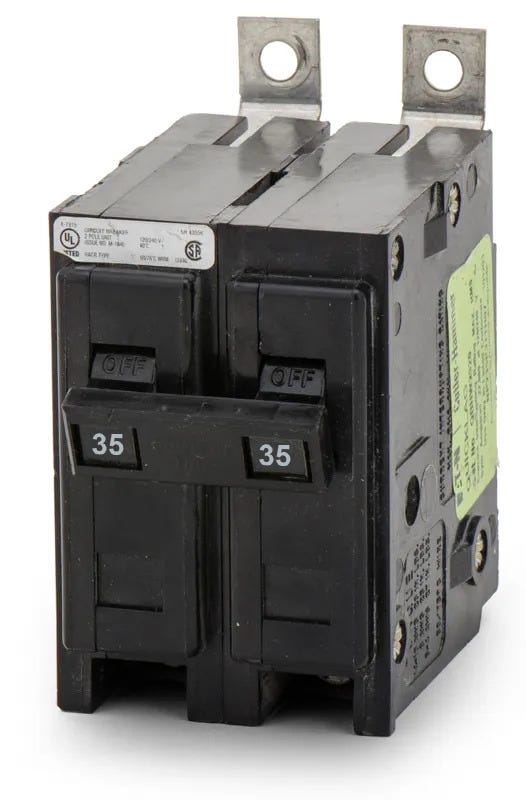

The Eaton QBHW2035 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 35 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 22kAIC@240V. The QBHW2035 has a panel mounting type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | QB |
| Amperage | 35 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Panel |
| Approval | UL, CSA |
| Interrupting Rating | 22kAIC@240V |
| Frame Type | BAB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Line and load |
| Wire Gauge | 14 to 4 AWG |
| For Use With | Load Center and Fuseboxes |
| Standards | HACR |
| Temperature Rating | 40°C |
| Circuit Breaker Type | QBHW |
| Mpn | QBHW2035 |
| Upc | 786679392706 |
