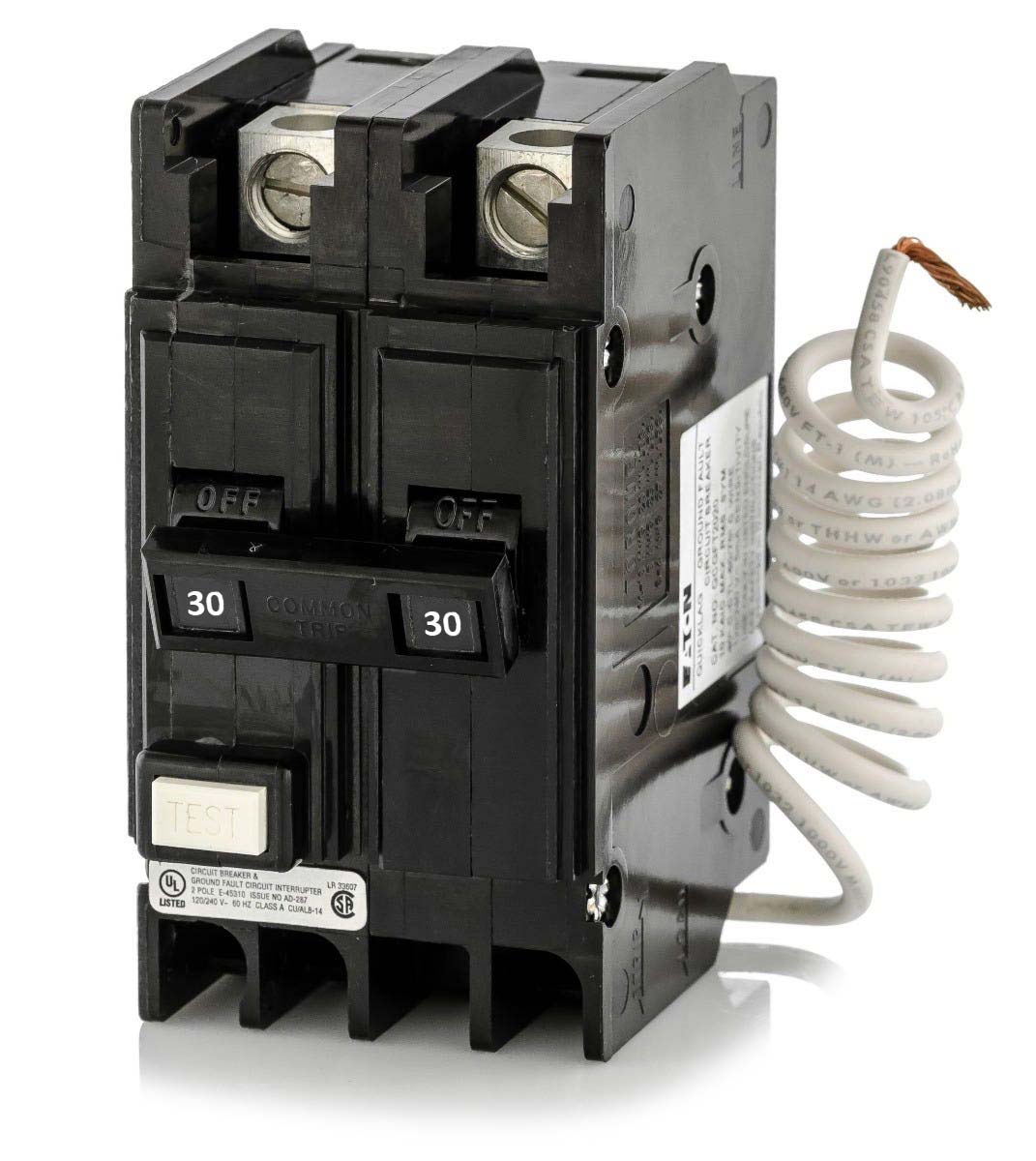

The Eaton QCGF2030 is a 2 Pole molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240VAC. The QCGF2030 has a feed-thru connection type and includes LI - long-time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | QCGF |
| Amperage | 30 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Contactor Type | Magnetic |
| Interrupting Rating | 10kAIC at 120/240VAC |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Breaker Feature | Ground Fault |
| Mpn | QCGF2030 |
| Upc | 786679574065 |
| Gtin | 00786679574065 |
