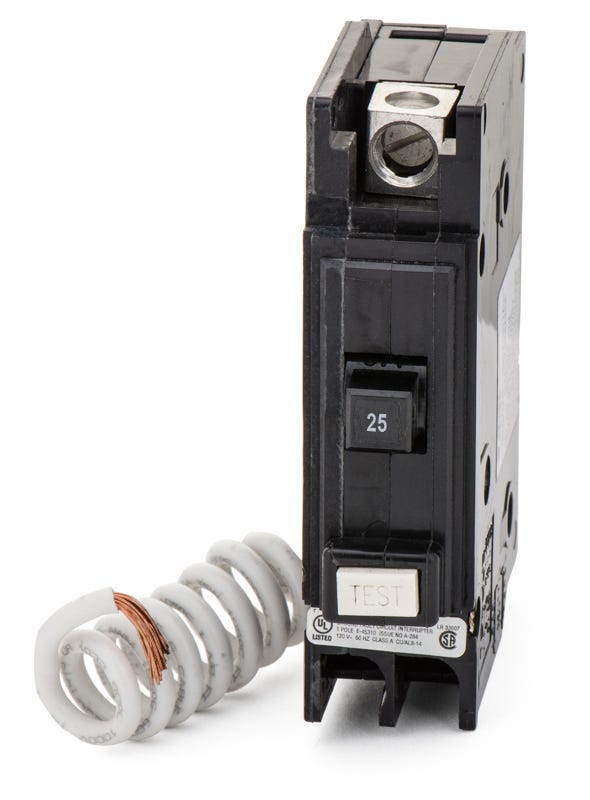

The Eaton QCGFT1025 is a 1 Pole molded case ground fault circuit breaker with a current rating of 25 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kA@120V. The QCGFT1025 has a panel mounting type and includes LI - long time and instantaneous functions.
| Brand | Eaton |
|---|---|
| Series | QC |
| Amperage | 25 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Panel |
| Approval | UL, CSA |
| Interrupting Rating | 10kA@120V |
| Frame Type | QCGFT1020 |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long Time and Instantaneous |
| Terminal Connection | Line and Load Side Lug |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GFCI |
| Mpn | QCGFT1025 |
| Upc | 786680130625 |
