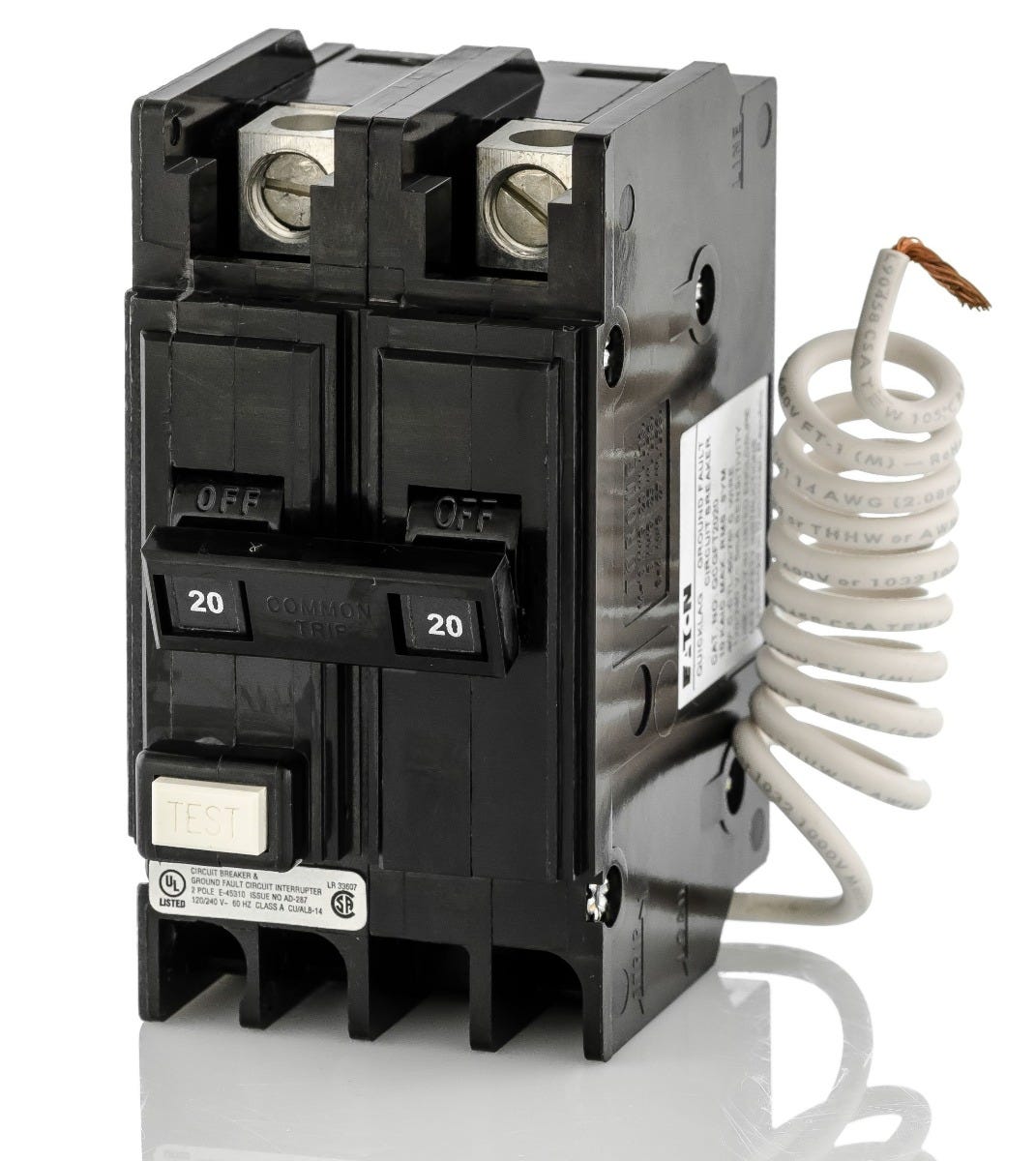

The Eaton QCGFT2020 is a 2 Pole thermal magnetic molded case ground fault circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240V. It has an interrupting rating of 10kAIC. The QCGFT2020 has a plug-on mounting type and includes LI - long-time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | QC |
| Amperage | 20 |
| Voltage | 120/240V |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Plug-On |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC |
| Frame Type | QCGFT |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Wire Gauge | #14-4 AWG |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GFCI |
| Mpn | QCGFT2020 |
| Upc | 786676026611 |
