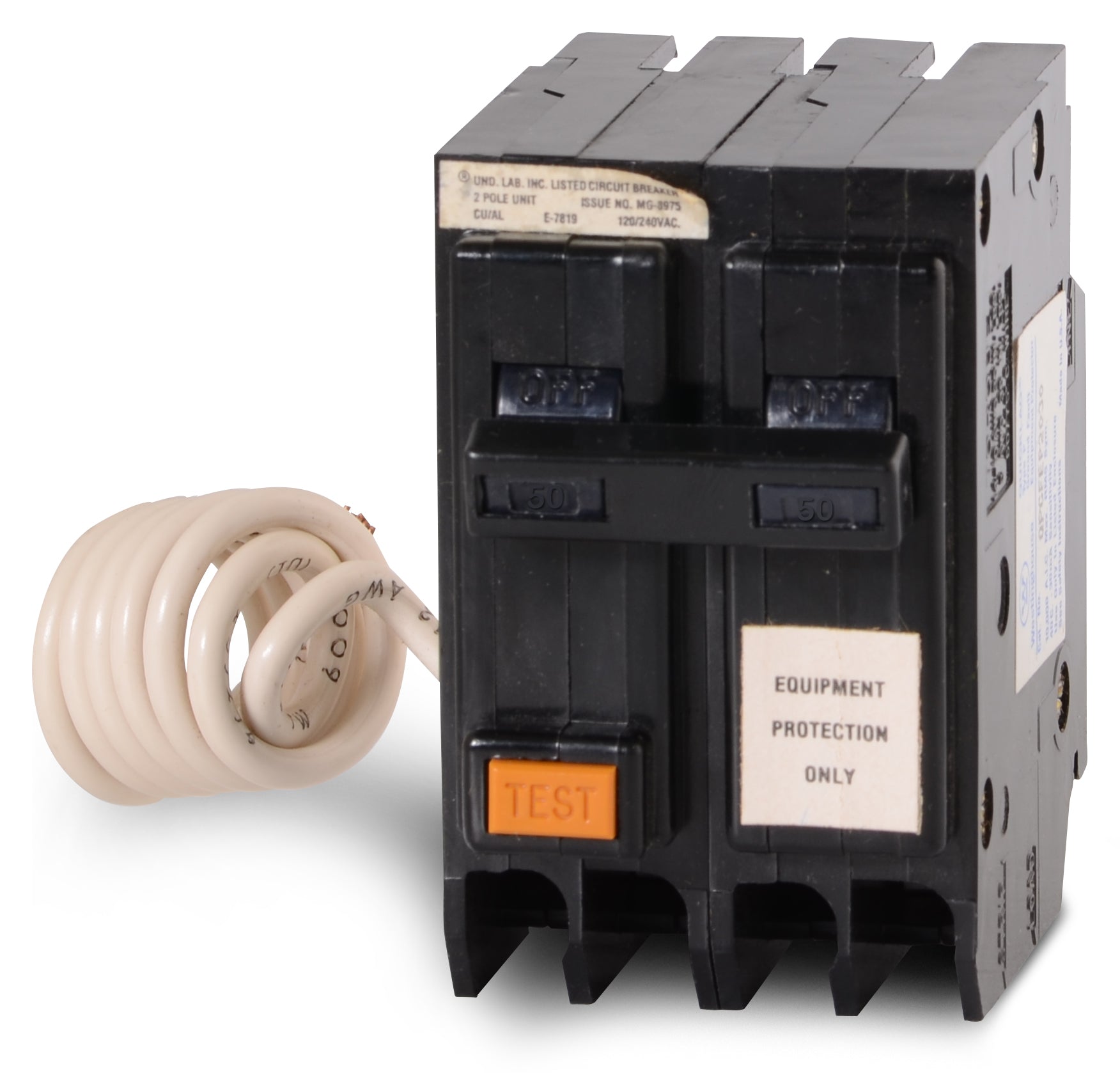

The Eaton QPGFEP2050 is a 2 Pole molded case ground fault circuit breaker with a current rating of 50 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC@120V. The QPGFEP2050 has a panel mounting type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | QPGFEP |
| Amperage | 50 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Panel |
| Approval | UL |
| Interrupting Rating | 10kAIC@120V |
| Frame Type | BR |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Wire Gauge | #14 to 4 AWG |
| Circuit Breaker Type | GFCI |
| Mpn | QPGFEP2050 |
| Upc | 786679370155 |
