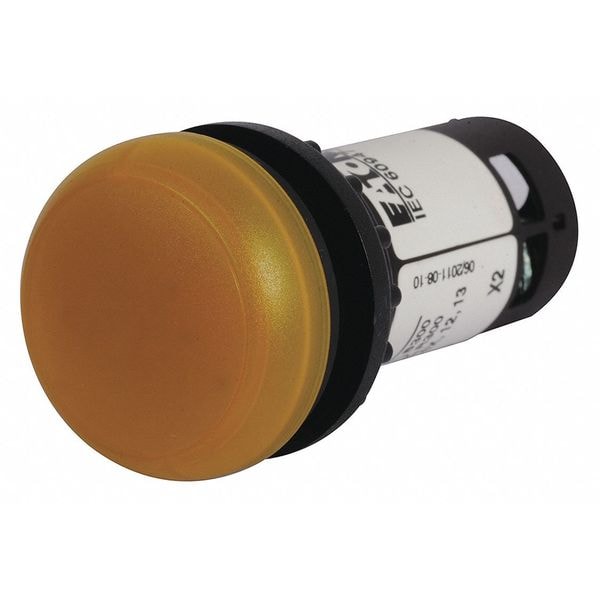

Luz indicadora elevada, amarilla, 120 VCA.
| Item | Flush Panel Light |
|---|---|
| Voltage | 120V AC |
| Color | Yellow |
| Material of Construction | Polycarbonate |
| Lamp Type | LED |
| Shape | Round |
| Terminal Connection | Screw |
| Electrical Connection | Terminal Clamp |
| Bezel | Plastic |
| Size | 22 mm dia (Mounting) |
| Lamp Module Type | Full Voltage |
| Basic Material | Plastic |
| Standards | CSA, EN 60947, IEC 60947, UL Listed |
| Current Drawn | 20 mA |
| IP Rating | IP69K, IP67 |
| Average Life | 100,000 hr |
| Panel Thickness | 0.930 in |
| NEMA Rating | 13, 4X |
| Body Material | Polycarbonate |
| Height | 2.2 in |
| Width | 1.17 in |
| Length | 1.17 in |
| Type | Indicating Light |
| Voltage Rating | 120 V |
| Series | C22 |
| Product Name | Eaton C22 compact pushbutton |
| Compliances | DIN VDE 0600 |
| Illumination | Illuminated |
| Certifications | UL Listed;EN 60947;IEC 60947;CSA Certified |
| Head Style | Flush |
| Includes Lens | Lens Included |
| Overall Width | 1.17 in |
| Voltage Rating - Maximum | 120 V AC |
| Includes Lamp Module | Lamp Module Included |
| Lamp Color | White |
| NEMA Enclosure Rating | 13, 4X |
| Overall Depth | 1.17 in |
| Lens Color | Yellow |
| Overall Height | 2.2 in |
| Panel Cutout Diameter | 22 mm |
| Manufacturer Warranty Length | 18 mo |
| Package Quantity | 1 |
