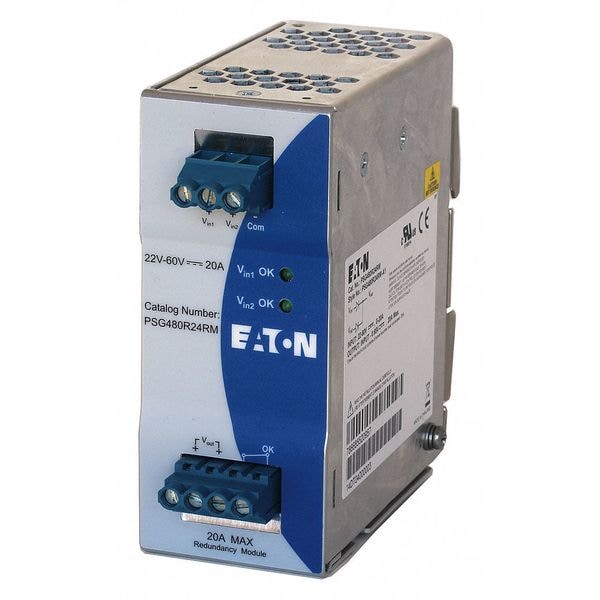

Redundant DC Power Supply, 24/48V DC, 24V DC, 480W, 20A, DIN Rail
| Item | Redundant DC Power Supply |
|---|---|
| Input Voltage | 24/48V DC |
| Output Voltage | 24V DC |
| Power Rating | 480 W |
| Output Amps | 20 A |
| Mounting | DIN Rail |
| Case Material | Aluminum Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 4.8 in |
| Width | 1.97 in |
| Depth | 4.76 in |
| Hz | 50/60 Hz |
| Output Noise | Less than 50 mV |
| Status Indicator | LED/DC OK Signal |
| Operating Temp. Range | -20 to 80 deg C |
| Series | PSG |
| Standards | CE, CSA C22.2, EN, IEC, RoHS, UL 508 |
| Features | Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint |
| Peak Amps | 20 |
| IP Rating | IP20 |
| Hold Up Time | Greater than 22 msec |
| Terminals | Finger safe |
| Frequency Rating | 47-63 Hz |
| Certifications | UL 508;CSA Std. C22.2;IEC Rated;EN Listed |
| Compliances | CE Marked |
| Enclosure Color | Aluminum |
| Current - Inrush | 25 A |
| Manufacturer Warranty | 3 yr |
| Operating Temperature - Maximum | 176 deg F |
| Wire Size - Maximum | 10 AWG |
| Wire Size - Minimum | 12 AWG |
| Housing Material | Aluminum |
| NEMA Enclosure Rating | 1 |
| Output Power - Rated | 960 W |
| Special Features | Finger Safe, Overvoltage Protection |
| Mean Time Between Failures (MTBF) | 800,000 hr |
| Current - Output | 20 A |
| Current - Peak | 20 A |
| Operating Temperature - Minimum | -40 deg F |
| Package Quantity | 1 |
