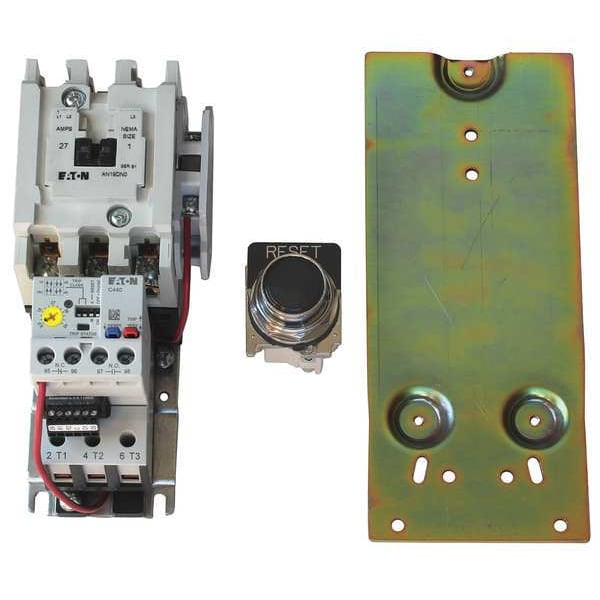

Kit de Conversión de Arrancador de Motor Magnético Reversible, Sin Gabinete de Clasificación NEMA, 120V AC, 3 Polos, 1NC
| Item | Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 9 to 45 A |
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 15 HP |
| Starter Type | NEMA Style |
| Action | Reversing |
| Amps AC | 45 A |
| NEMA Size | 2 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 25 HP |
| HP @ 1 Phase - 120V | 3 hp |
| Features | Universal NEMA Retrofit Starter Kit |
| Includes | 16 Gauge Control Wire, Mounting Plate, 10250T Pushbutton, Remote Reset Module, Reset Pushbutton Legend Plate |
| HP @ 3 Phase - 575V | 25 hp |
| Width | 6 in |
| Depth | 4.44 in |
| HP @ 1 Phase - 230V | 7 1/2 hp |
| HP @ 3 Phase - 208V | 10 HP |
| Height | 5.05 in |
| Standards | ATEX Compliant 94/9/EC, Equipment Group 2, Category 2, CE, CSA, IEC/EN 60947 VDE 0660, ISO 13849-1 (EN954-1), RoHS, UL Listed |
| Hz | 50/60 |
| Thermal Unit Code | Not Applicable |
| Enclosure Type | Open |
| Weight | 3.92 lb |
| Product Height | 11 in |
| Product Width | 9-1/2 in |
| Product Length/Depth | 17 in |
| Product Name | Eaton Freedom NEMA motor control starter |
| Special Features | With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30) |
| Mounting | Horizontal |
| Overall Height | 11 in |
| Overall Depth | 17 in |
| Includes Auxiliary Contacts | Yes |
| Overall Width | 9-1/2 in |
| Trip Class | 10A/10/20/30 |
| Frame Size | S2 |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Coil Voltage | 120V AC |
| Minimum Overload Relay Current Setting | 9 A |
| Operator Function | Not Applicable |
| Number of Auxillary Contacts | 1 |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Phase | Three |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Auxiliary Contact Module Capacity | 6 |
| Maximum Overload Relay Current Setting | 45 A |
| Overload Protection Type | Electronic |
| Maximum Voltage Rating | 600 V AC |
| Current AC | 45 A |
| Mounting Postion | Horizontal |
| Series | Freedom |
| Horsepower @ Three Phase - 480V AC | 25 HP |
| Hazardous Location Specification | Not Applicable |
| Mounting Style | Surface |
| Operator | None |
| Reversing Capability | Reversing |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Frequency | 50/60 Hz |
| Package Quantity | 1 |
