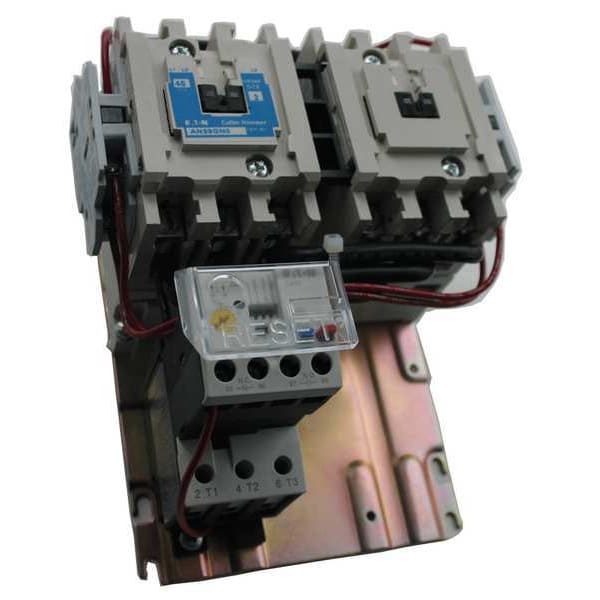

Arrancador magnético NEMA para motor inversor, sin recinto con clasificación NEMA, 120V AC, 3 polos, 1 contacto normalmente abierto.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 4 to 20 A |
| Type | Starter |
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 7.5 HP |
| Starter Type | NEMA Style |
| Action | Reversing |
| Amps AC | 27 A |
| NEMA Size | 1 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 10 HP |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 3 Phase - 208V | 7.5 HP |
| Standards | CE, CSA, UL Listed |
| Width | 9-1/4 in |
| Depth | 7.38 in |
| HP @ 1 Phase - 230V | 3 hp |
| Hz | 50/60 |
| Includes | Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism |
| HP @ 3 Phase - 575V | 10 hp |
| Features | Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism |
| Height | 7.87 in |
| Thermal Unit Code | Not Applicable |
| Enclosure Type | Open |
| Weight | 8.2 lb |
| Relay | C440 electronic |
| Overload Relay | C440 electronic |
| Nema Frame Size | NEMA Size 1 |
| Product Name | Eaton Freedom NEMA motor control starter |
| Product Width | 6.7 in |
| Product Height | 7.1 in |
| Mounting | Horizontal |
| Amperage Rating | 27 A |
| Product Length/Depth | 4.98 in |
| Certifications | UL;CSA;CE;NEMA |
| Special Features | With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30) |
| Coil Voltage | 110/120V AC |
| Minimum Overload Relay Current Setting | 4 A |
| Series | Freedom |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Trip Class | 10A/10/20/30 |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Operator Function | Not Applicable |
| Overall Height | 7.1 in |
| Overall Width | 6.7 in |
| Overload Protection Type | Electronic |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Auxiliary Contact Module Capacity | 6 |
| Maximum Overload Relay Current Setting | 20 A |
| Frequency | 50/60 Hz |
| Mounting Postion | Horizontal |
| Maximum Voltage Rating | 600 V AC |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Reversing Capability | Reversing |
| Phase | Three |
| Frame Size | S1 |
| Operator | None |
| Current AC | 27 A |
| Hazardous Location Specification | Not Applicable |
| Overall Depth | 4.98 in |
| Number of Auxillary Contacts | 1 |
| Starter Style | NEMA |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Style | Surface |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Package Quantity | 1 |
