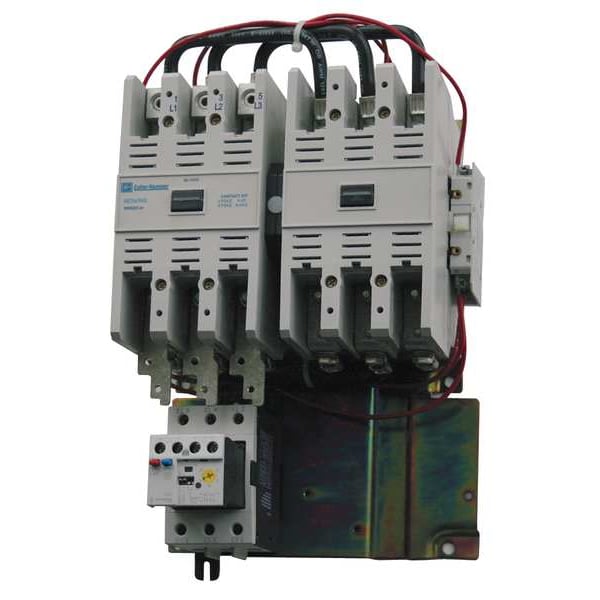

Arrancador magnético de motor NEMA con inversión, sin gabinete NEMA Rating, 120V CA, 3 polos, 1 contacto normalmente abierto.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 60 to 300 A |
| Type | Starter |
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 100 HP |
| Starter Type | NEMA Style |
| Action | Reversing |
| Amps AC | 270 A |
| NEMA Size | 5 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 200 HP |
| Includes | Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism, W/ Ground Fault |
| Height | 25 in |
| HP @ 3 Phase - 575V | 200 hp |
| HP @ 3 Phase - 208V | 75 HP |
| Standards | CE, CSA, UL Listed |
| Depth | 18 in |
| Width | 11 in |
| Hz | 50/60 |
| Features | Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism, with Ground Fault |
| Enclosure Type | Open |
| Thermal Unit Code | Not Applicable |
| Weight | 1 lb |
| Relay | C440 electronic |
| Certifications | UL;CSA;CE;NEMA |
| Overload Relay | C440 electronic |
| Product Length/Depth | 7 in |
| Product Name | Eaton Freedom NEMA motor control starter |
| Special Features | With C440 EOLR ground fault feature set, SEL reset, SEL class (10, 20) |
| Nema Frame Size | NEMA Size 5 |
| Product Width | 14 in |
| Amperage Rating | 270 A |
| Coil Voltage | 110/120V AC |
| Product Height | 17.1 in |
| Mounting | Horizontal |
| Horsepower @ Three Phase - 480V AC | 200 HP |
| Current AC | 270 A |
| Overall Height | 17.1 in |
| Horsepower @ Three Phase - 240V AC | 100 HP |
| Auxiliary Contact Module Capacity | 6 |
| Overload Protection Type | Electronic |
| Overall Width | 14 in |
| Hazardous Location Specification | Not Applicable |
| Operator | None |
| Frame Size | S5 |
| NEMA Enclosure Rating | No Enclosure |
| Trip Class | 10A/10/20/30 |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Single Phase - 240V AC | Not Rated |
| Maximum Overload Relay Current Setting | 300 A |
| Mounting Postion | Horizontal |
| Operator Function | Not Applicable |
| Phase | Three |
| Horsepower @ Three Phase - 208V AC | 75 HP |
| Overall Depth | 7 in |
| Series | Freedom |
| Number of Auxillary Contacts | 1 |
| Horsepower @ Single Phase - 120V AC | Not Rated |
| Maximum Voltage Rating | 600 V AC |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 600V AC | 200 HP |
| Mounting Style | Surface |
| Reversing Capability | Reversing |
| Minimum Overload Relay Current Setting | 60 A |
| Starter Style | NEMA |
| Package Quantity | 1 |
