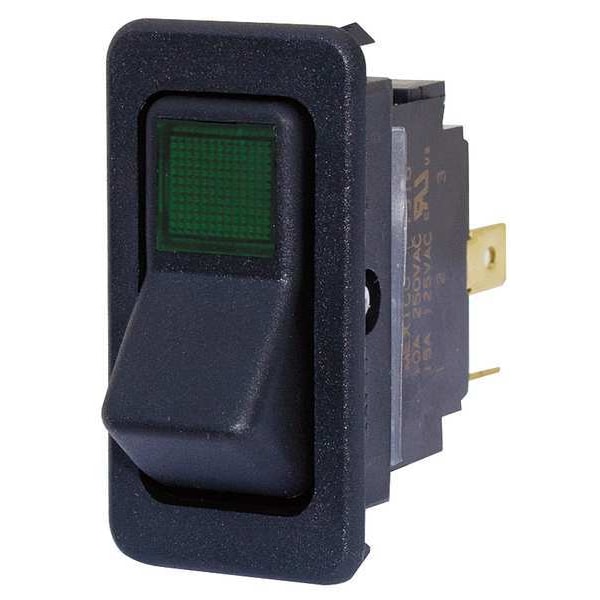

Interruptor Basculante, Apagado/Ninguno/Encendido, Pestaña de 1/4 Pulgadas
| Item | Lighted Rocker Switch |
|---|---|
| Contact Form | SPST |
| Number of Connections | 3 |
| Switch Function | On, Off |
| Terminals | 0.250 in Quick Connect Tab |
| Mounting Hole | 0.867 in x 1.734 in |
| AC Contact Rating | 10 A @ 250 V, 15 A @ 125 V |
| DC Contact Rating | 15 A @ 28 V |
| HP | 3/4 hp |
| Special Features | 14V DC Incandescent Indicator Light, Illuminated |
| Standards | cRUus, RoHS, UL E2702 |
| Product Type | Rocker Switch |
| IP Rating | IP54 |
| Color | Black, Green |
| Height | 1.602 in |
| Length | 1.97 in |
| Width | 1.024 in |
| Switch Color | Black |
| Series | 8005 |
| Resistance Properties | Dust Resistant, Moisture Resistant |
| Overall Depth | 2 in |
| Mounting Hole Width | 0.87 in |
| Includes Lens | Lens Included |
| Lens Color | Green |
| Number of Positions | 2 |
| Lamp Module Type | Full Voltage |
| Overall Height | 1.97 in |
| Switch Function Configuration | On, Off |
| Mounting Hole Length | 1.73 in |
| Overall Width | 1.02 in |
| Terminal Connection Type | 1/4 in Spade |
| Features | Slow-Make/Slow-Break Contacts, Matte Finish |
| Operator Illumination | Illuminated |
| Horsepower | 3/4 hp @ 250 V |
| Package Quantity | 1 |
