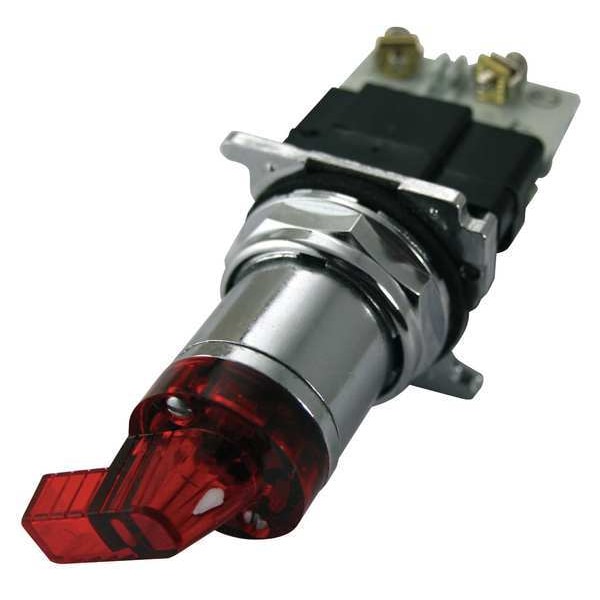

Interruptor selector, iluminado, 3 posiciones, palanca, 30mm.
| Item | Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Lever |
| Contact Form | 1 NO |
| Action | Maintained |
| Operator Head Material | Polymer |
| Cam | 3 |
| Color | Red |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Position | 3 |
| Bezel Material | Zinc |
| Bezel Color | Chrome |
| NEMA Contact Rating Designation | A600, P600 |
| Includes | Contact Block, Selector Switch Operator |
| Lamp Type | Incandescent |
| Contact Rating | 10A @ 660V AC/DC |
| Standards | CE, CSA, UL Listed |
| Lamp Module Type | Transformer |
| Switch Operation @ Position A | XOO |
| IP Rating | IP68 |
| Switch Operation @ Position C | OOX |
| Lamp Voltage | 6V AC |
| Switch Operation @ Position D | No Fourth Position |
| Switch Operation @ Position B | OXO |
| Replacement Lamp | Mfr. No. 755 |
| Lamp Module Voltage | 120V AC |
| AC Contact Rating | 10 A @ 660 V |
| DC Contact Rating | 5 A @ 250 V |
| Series | 10250T |
| Product Length/Depth | 2.094 in |
| Product Height | 5 in |
| Product Width | 2-3/8 in |
| Actuator color | Red |
| Actuator | Lever |
| Certifications | UL Listed |
| Illumination | Illuminated |
| Compliances | CE Marked |
| Product Name | Eaton 10250T pushbutton |
| Panel Cutout Diameter | 30 mm |
| Contact Block Material | Metal |
| Manufacturer Warranty Length | 1 yr |
| Overall Width | 2.37 in |
| Hazardous Location Specification | Not Rated |
| Switch Function @ 1st Position | On |
| NEMA Enclosure Rating | 3, 4, 13, 12, 4X, 3R |
| Metal Operator Head Finish | Not Applicable |
| Overall Height | 5 in |
| Lamp Voltage - Maximum | 120 V AC |
| Operator Head Type | Long-Handled Knob |
| Includes Operator Key | Not Applicable |
| Key Removal Position | Not Applicable |
| Operator Head Color | Red |
| Switch Function @ 2nd Position | On |
| Switch Function @ 3rd Position | On |
| Overall Depth | 2.09 in |
| Switch Function @ 4th Position | No Fourth Position |
| Number of Positions | 3 |
| Operator Illumination | Illuminated |
| Package Quantity | 1 |
