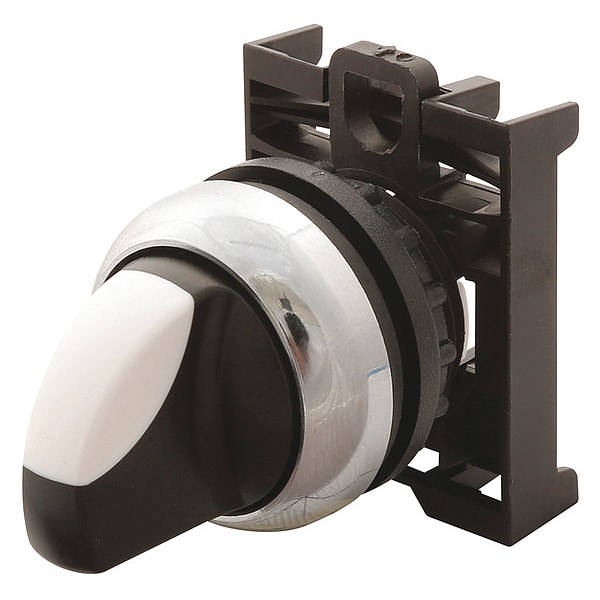

Selector de mango corto, Negro, 2 posiciones, 22mm.
| Action | Momentary, Maintained |
|---|---|
| Size | 22.5 mm |
| Bezel | Silver Guarded |
| Item | Short-Handled Selector Switch |
| Bezel Material | Silver |
| Operator Head Material | Polycarbonate |
| Type | Pushbutton |
| Cam | No Cam Needed |
| IP Rating | IP66, IP67, IP69K |
| Series | M22 |
| Button color | white |
| Product Length/Depth | 8 in |
| Certifications | CCC Marked |
| Actuator | Extended, button |
| Product Width | 5 in |
| Compliances | CE Marked |
| Environmental rating | IP67, IP69K, NEMA 4X, NEMA 13 |
| Operating cycles | 5 million |
| Actuator function | Momentary |
| Illumination | Illuminated |
| Product Height | 1 in |
| Number of Positions | 2 |
| Product Name | Eaton M22 modular pushbutton |
| Switch Function @ 1st Position | On |
| Switch Function @ 4th Position | No Fourth Position |
| Overall Depth | 2.78 in |
| Overall Width | 1 in |
| Overall Height | 1 in |
| Key Removal Position | Not Applicable |
| Switch Function @ 2nd Position | On |
| Panel Cutout Diameter | 22 mm |
| Includes Operator Key | Not Applicable |
| Operator Head Color | Black |
| Operator Head Type | Short-Handled Knob |
| Hazardous Location Specification | Not Rated |
| Operator Illumination | Non-Illuminated |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Switch Function @ 3rd Position | No Third Position |
| Package Quantity | 1 |
