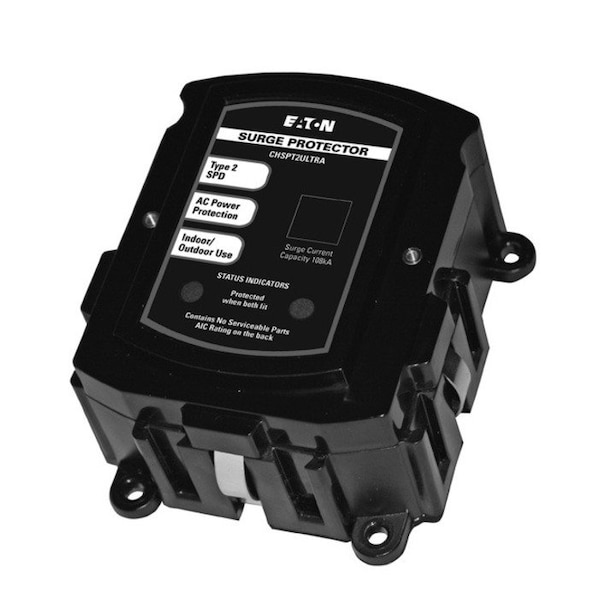

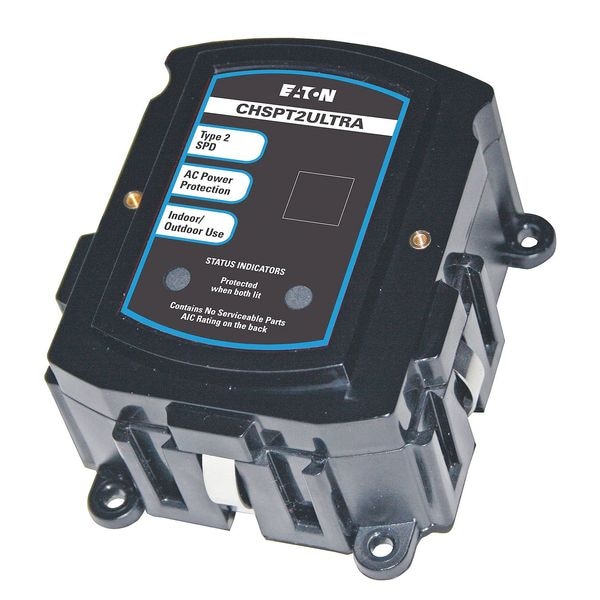

Surge Protection Device, 1 Phase, 120/240V, 2 Poles, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Loadcenter |
| Phase | 1 |
| Voltage | 120/240V |
| Number of Poles | 2 |
| Voltage Protection Rating | 1000V (L-L), 600V (L-G, L-N), 800V (N-G) |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current Per Mode | 108 kA |
| Max. Surge Current per Phase | 108 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 22 kA |
| Modular | Yes |
| Filtering | No |
| Max. Continuing Operating Voltage | 150/300V AC |
| Enclosure NEMA Rating | NEMA 4 |
| IP Rating | IP56 |
| Enclosure Material | Advanced Polymer |
| Length | 7 in |
| Depth | 2-1/2 in |
| Width | 5 in |
| Wire Gauge | 14 AWG |
| Includes | (4) Self Tapping Screws |
| Modular / Nonmodular | Modular |
| Standards | cUL Listed, UL 1449, Type 2 |
| Joules | 2,820 |
| Lightning Impulse Current | 108 kA |
| Color | Black |
| Amps | 50 |
| Max. Operating Temp. | 122 deg F |
| UL SPD Type | Type 2 |
| System Connection | Parallel |
| Min. Operating Temp. | -40 deg F |
| Output Voltage | 230 V AC, 120 V AC |
| Type | Surge protection device |
| Includes Surge Counter | No |
| Operating Temperature | -40 to 50 °C |
| Surge Current | 108 kA |
| Operating voltage | 150V L-N, 300V L-L |
| Frequency Rating | 60 Hz |
| Certifications | cUL Certified |
| Interrupt rating | 200 kAIC |
| Special Features | Meets or exceeds the requirments specified in IBC ®2006, CBC2007, and UBC®Zone 4 |
| Product Series | CHSPT2 |
| Receptacles | Hardwired, AC Power |
| Package Quantity | 1 |
