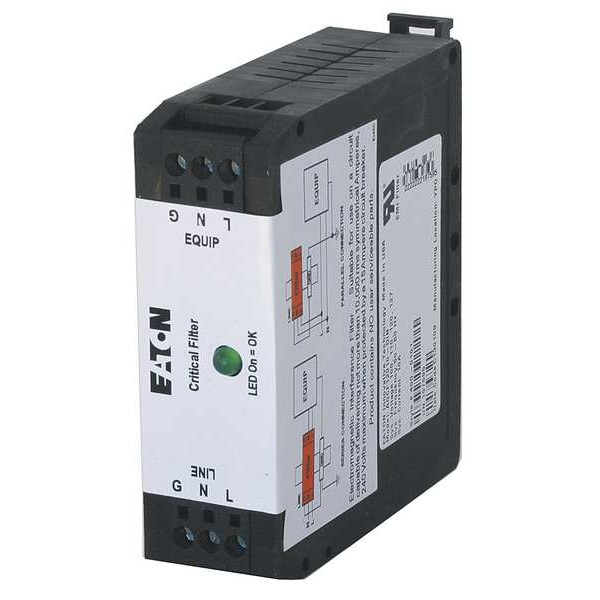

Surge Protection Device, 1 Phase, 240V, 1 Poles, 2 Wires, 30kA
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Panel |
| Phase | 1 |
| Voltage | 240 V |
| Number of Poles | 1 |
| Voltage Protection Rating | 800V (L-N), 900V (L-G, N-G) |
| Number of Wires | 2 Wires |
| Filtering / Nonfiltering | Filtering |
| Modes of Protection | L-G, L-N, N-G |
| Max. Surge Current Per Mode | 30 kA |
| Max. Surge Current Per Phase | 30 kA |
| Nominal Discharge Current | 3 kA |
| Short Circuit Current Rating | 10 kA |
| Modular | Yes |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 275V AC |
| Enclosure NEMA Rating | NEMA 1 |
| Enclosure Material | Polycarbonate |
| Length | 4.77 in |
| Depth | 1-1/4 in |
| Width | 2.47 in |
| Wire Gauge | 12 AWG |
| Standards | CSA, UL 1283 5th Edition, UL 1449 3rd Edition |
| Modular / Nonmodular | Modular |
| Noise Attenuation | 40dB |
| Includes Surge Counter | No |
| Certifications | ANSI/IEEE Std C62.41.1 |
| Protection filtering | Critical protection with filtering |
| Amperage Rating | 10A |
| Package Quantity | 1 |
