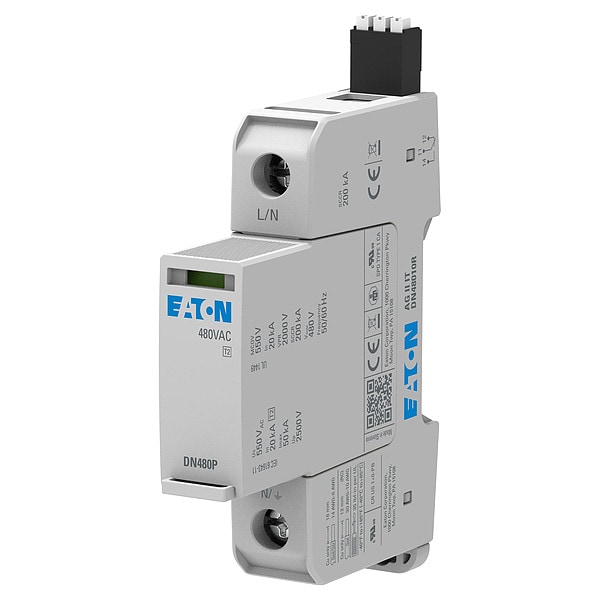

Surge Protection Device, 1 Phase, 480V, 1 Poles, 1 Wire
| Item | Surge Protection Device |
|---|---|
| Mounting Style | DIN Rail |
| Phase | 1 |
| Voltage | 480 V |
| Number of Poles | 1 |
| Voltage Protection Rating | 1500V (L-G) |
| Number of Wires | 1 Wire |
| Modes of Protection | L-G, L-N, N-G |
| Max. Surge Current per Mode | 50 kA |
| Max. Surge Current per Phase | 50 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Filtering | No |
| Max. Continuing Operating Voltage | 480V AC |
| Enclosure Material | Non-Metallic |
| Depth | 4.3 in |
| Width | 0.71 in |
| Includes | Alarm Contacts |
| Standards | ANSI/ULT 1449 5th Edition, Prop 65 Compliant, REACH Compliant, RoHS Compliant |
| UL SPD Type | Type 1CA |
| Status Indicator | Mechanical Flag |
| Max. Operating Temp. | 185 deg F |
| Min. Operating Temp. | -40 deg F |
| Amps | 50,000 |
| System Connection | Parallel |
| Package Quantity | 1 |
