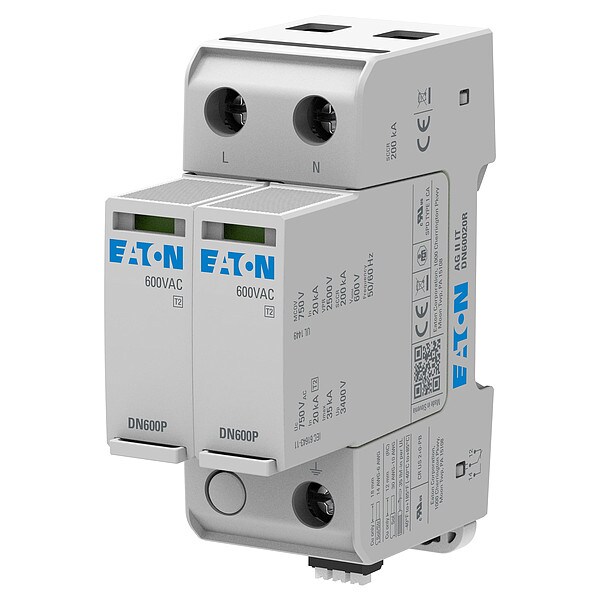

Surge Protection Device, 2 Phase, 600V, 2 Poles, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | DIN Rail |
| Phase | 2 |
| Voltage | 600 V |
| Number of Poles | 2 |
| Voltage Protection Rating | 1500V (L-L, L-G, N-G) |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G, L-N, N-G |
| Max. Surge Current per Mode | 50 kA |
| Max. Surge Current per Phase | 50 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Filtering | No |
| Max. Continuing Operating Voltage | 600V AC |
| Enclosure Material | Non-Metallic |
| Depth | 4.13 in |
| Width | 1.42 in |
| Includes | Alarm Contacts |
| Standards | ANSI/ULT 1449 5th Edition, Prop 65 Compliant, REACH Compliant, RoHS Compliant |
| Status Indicator | Mechanical Flag |
| Min. Operating Temp. | -40 deg F |
| Amps | 50,000 |
| Max. Operating Temp. | 185 deg F |
| UL SPD Type | Type 1CA |
| System Connection | Parallel |
| Package Quantity | 1 |
