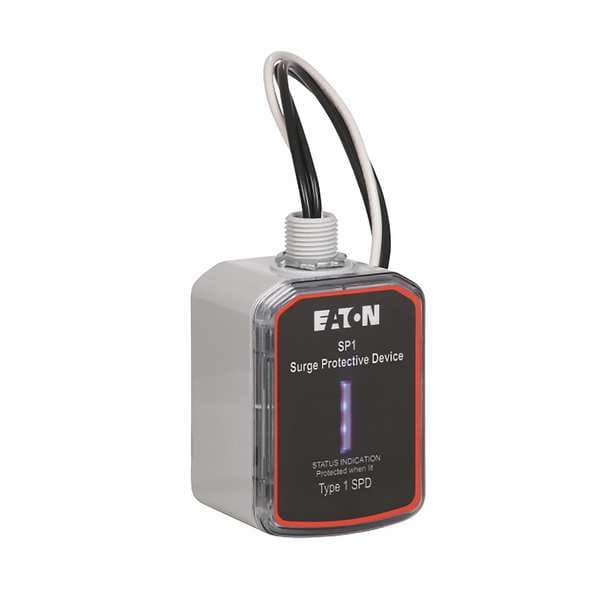

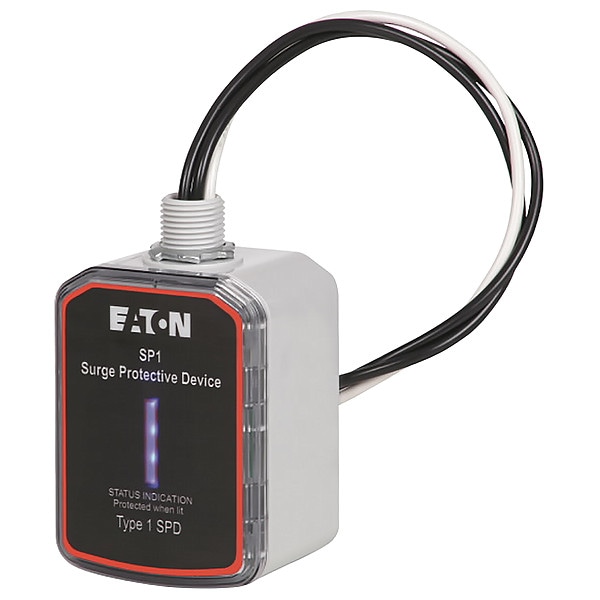

Surge Protection Device, 3 Phase, 240V, 2 Poles, 3 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Chase Nipple/Panel, DIN-Rail, Wall |
| Phase | 3 |
| Voltage | 240 V |
| Number of Poles | 2 |
| Voltage Protection Rating | 1000V (L-G, L-L) |
| Number of Wires | 3 Wires |
| Modes of Protection | L-G, L-L |
| Max. Surge Current per Mode | 50 kA |
| Max. Surge Current per Phase | 50 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Modular | No |
| Max. Continuing Operating Voltage | 240V |
| Enclosure NEMA Rating | NEMA 4 |
| IP Rating | IP66 |
| Enclosure Material | Advanced Polymer |
| Length | 4.8 in |
| Depth | 2-1/2 in |
| Width | 2.9 in |
| Wire Gauge | 12 AWG |
| Includes | LED Status Indicator |
| Max. Operating Temp. | 122 deg F |
| Amps | 20 |
| UL SPD Type | Type 1/2 |
| Min. Operating Temp. | -4 deg F |
| Chase Nipple Size | 1/2 in |
| System Connection | Parallel |
| Standards | UL 1449 and UL 1283 |
| Type | SP1 |
| Lightning Impulse Current | 200 kA |
| Color | Black |
| Includes Surge Counter | No |
| Status Indicator | LED Light |
| Certifications | UL 1449 |
| Operating voltage | 300 L-L, 300 L-G |
| Interrupt rating | 50 kAIC |
| Package Quantity | 1 |
