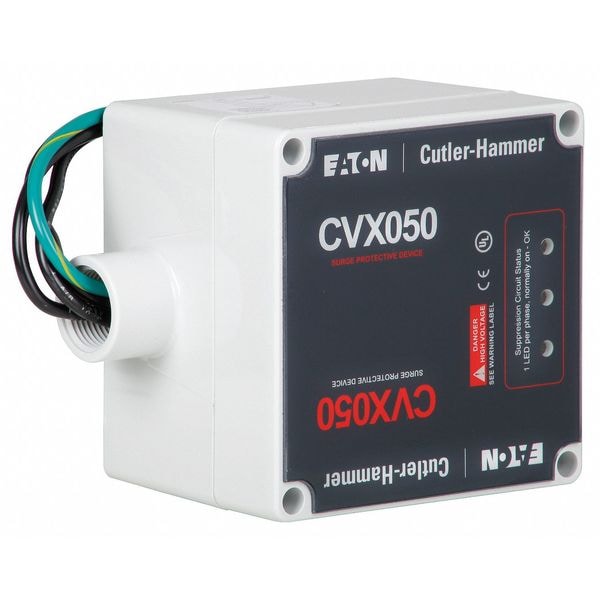

Surge Protection Device, 3 Phase, 277/480V, 3 Poles, 4 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Base |
| Phase | 3 |
| Voltage | 277/480V |
| Number of Poles | 3 |
| Voltage Protection Rating | 1200V (L-G, L-N, N-G), 1800V (L-L) |
| Number of Wires | 4 Wires |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current Per Mode | 100 kA |
| Max. Surge Current per Phase | 100 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 100 kA |
| Modular | Yes |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 320V AC |
| Enclosure NEMA Rating | NEMA 4X |
| IP Rating | IP56 |
| Enclosure Material | Plastic |
| Length | 4.72 in |
| Depth | 3.53 in |
| Width | 4.72 in |
| Wire Gauge | 10 AWG |
| Includes | 3/4 in Conduit Fitting |
| Modular / Nonmodular | Modular |
| Standards | UL 1449 3rd Edition |
| Type | CVX100 |
| Includes Surge Counter | No |
| Accessories | Includes ground |
| Certifications | UL 1449 |
| Interrupt rating | 100 kAIC |
| Operating voltage | 640 L-L, 320 L-N, 320 L-G, 320 N-G |
| Package Quantity | 1 |
