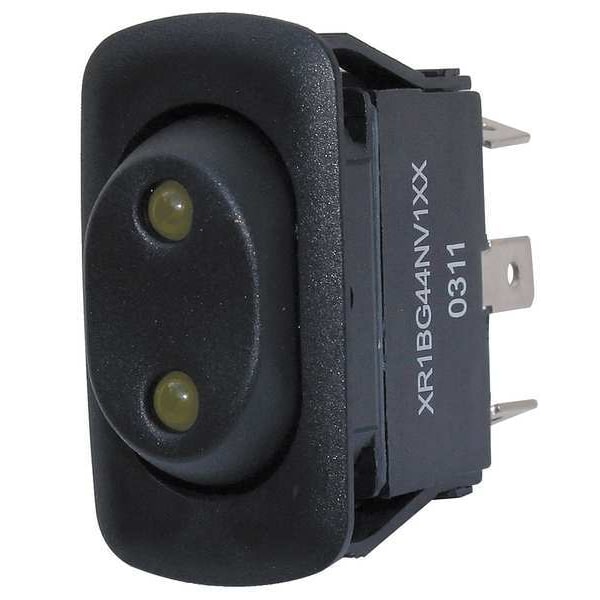

Interruptor, Mant, Encendido/Apagado/Encendido, pestaña de 1/4 de pulgada.
| Item | Lighted Rocker Switch |
|---|---|
| Contact Form | SPDT |
| Number of Connections | 6 |
| Switch Function | On, On/Off |
| Terminals | 0.250 in Quick Connect Tab |
| Mounting Hole | 0.83 in x 1.46 in |
| AC Contact Rating | 10 A @ 277 V, 16 A @ 125 V |
| HP | 3/4 hp |
| Special Features | 14V DC LED Indicator Light, Illuminated |
| Standards | cRUus, RoHS, UL E2702 |
| Product Type | Rocker Switch |
| IP Rating | IP56 |
| Width | 0.98 in |
| Length | 1.81 in |
| Color | Amber |
| Height | 1.87 in |
| Mounting Hole Width | 0.83 in |
| Mounting Hole Length | 1.46 in |
| Features | Nylon with Glass Fiber Actuators, Nylon Material Frames, Plastic Bezel, Silver Plated Brass Terminals |
| Operator Illumination | Illuminated |
| Overall Height | 1.81 in |
| Terminal Connection Type | 0.25 in Quick Connect Tab |
| Lamp Voltage - Maximum | 18 V DC |
| Overall Width | 0.98 in |
| Operating Temperature - Minimum | -4 deg F |
| Horsepower | 3/4 hp @ 277 V |
| Series | X |
| Operating Temperature - Maximum | 176 deg F |
| Includes Lens | Lens Included |
| Switch Function Configuration | On, On/Off |
| Number of Positions | 3 |
| Overall Depth | 1.87 in |
| Lamp Type | LED |
| Lens Color | Amber |
| Package Quantity | 1 |
