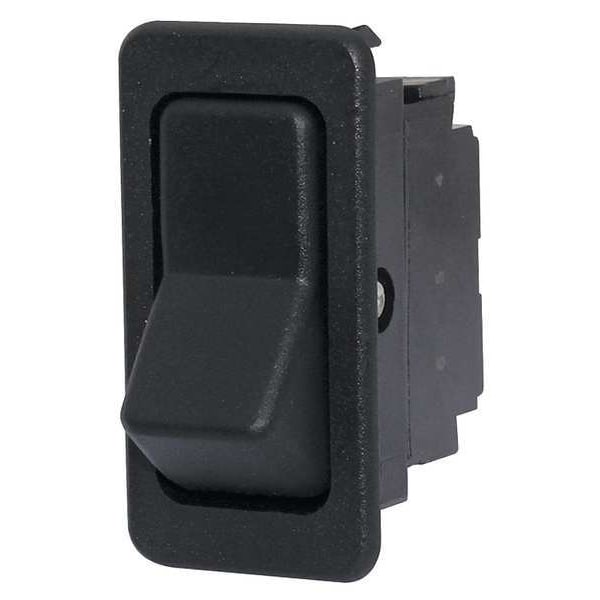

Interruptor, Mantenimiento, Encendido/Apagado/Encendido, Tornillo
| Item | Rocker Switch |
|---|---|
| Contact Form | SPDT |
| Number of Connections | 3 |
| Switch Function | On, On/Off |
| Terminals | Screw |
| Mounting Hole | 0.867 in x 1.734 in |
| AC Contact Rating | 10 A @ 250 V, 15 A @ 125 V |
| DC Contact Rating | 15 A @ 28 V |
| HP | 3/4 hp |
| Standards | cRUus, RoHS, UL E2702 |
| Special Features | Non-Illuminated |
| Product Type | Rocker Switch |
| Switch Color | Black |
| IP Rating | IP54 |
| Features | Slow-Make/Slow-Break Contacts, Matte Finish |
| Number of Positions | 3 |
| Switch Function Configuration | On, On/Off |
| Overall Width | 1.02 in |
| Series | 8004 |
| Mounting Hole Width | 0.87 in |
| Overall Depth | 2 in |
| Lamp Module Type | Full Voltage |
| Horsepower | 3/4 hp @ 250 V |
| Mounting Hole Length | 1.73 in |
| Terminal Connection Type | Screw Terminals |
| Operator Illumination | Non-Illuminated |
| Overall Height | 1.97 in |
| Resistance Properties | Dust Resistant, Moisture Resistant |
| Package Quantity | 1 |
