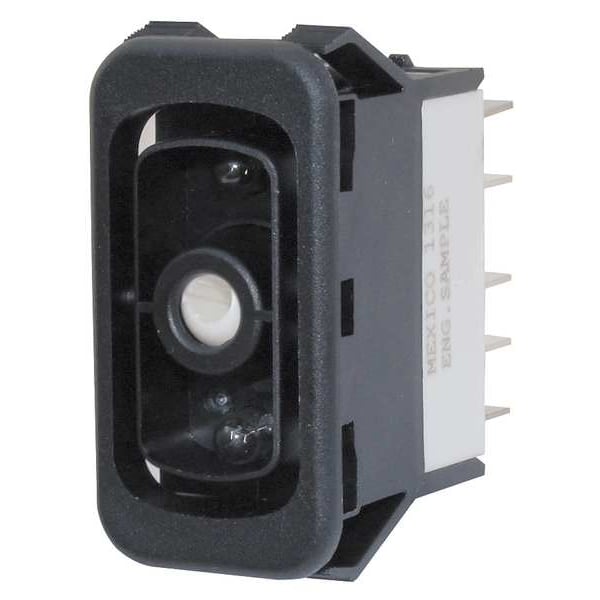

Interruptor, mamá, Encendido/Apagado/Encendido, Pestaña de 1/4 de pulgada.
| Item | Lighted Rocker Switch |
|---|---|
| Contact Form | SPDT |
| Number of Connections | 7 |
| Switch Function | Momentary On/Off/Momentary On |
| Terminals | 0.250 in Quick Connect Tab |
| Mounting Hole | 0.867 in x 1.734 in |
| AC Contact Rating | 10 A @ 250 V, 15 A @ 125 V |
| DC Contact Rating | 15 A @ 28 V |
| Special Features | 14V DC Incandescent Indicator Light, Illuminated |
| Standards | CSA, RoHS, UL Listed |
| Product Type | Rocker Switch |
| IP Rating | IP42 |
| Overall Height | 1.97 in |
| Number of Positions | 3 |
| Operator Illumination | Illuminated |
| Switch Function Configuration | On, On/Off |
| Lamp Module Type | Full Voltage |
| Overall Width | 1.02 in |
| Resistance Properties | Dust Resistant, Watertight |
| Lamp Type | LED |
| Operating Temperature - Minimum | -40 deg F |
| Mounting Hole Length | 1.73 in |
| Lamp Voltage - Maximum | 14 V DC |
| Terminal Connection Type | 0.25 in Quick Connect Tab |
| Operating Temperature - Maximum | 185 deg F |
| Overall Depth | 2-1/4 in |
| Mounting Hole Width | 0.87 in |
| Series | NGR |
| Package Quantity | 1 |
