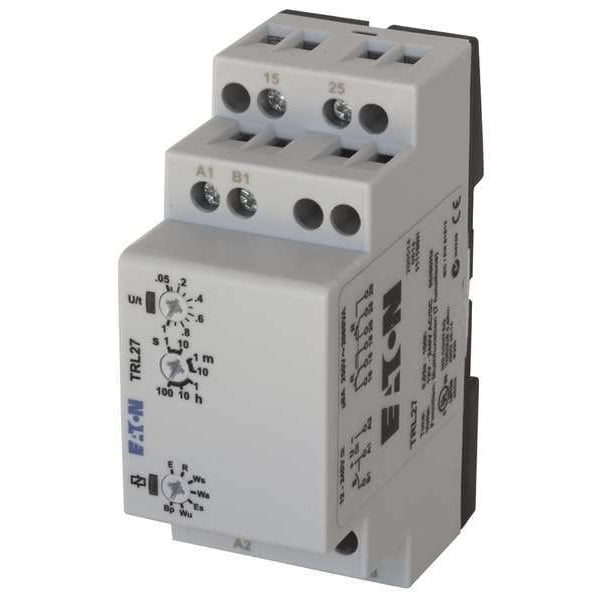

Relé de retardo de tiempo, 24 a 240VCA/VCC, 8A, DPDT, Indicador de estado: LED.
| Item - Relay | Relay |
|---|---|
| Function - Timing Relay | OFF Delay (with Control Input), ON Delay (Voltage Controlled), On Delay (with Control Input), One Shot Leading Edge (Voltage Controlled), One Shot Leading Edge (with Control Input), One Shot Trailing Edge (with Control Input), Symmetric Pulse Gen |
| Coil Volts | 24 to 240V AC/DC |
| AC Contact Rating - Relay | 8A @ 250V |
| Number of Pins - Relay | 16 |
| Adjustment Method - Timer | Dip Switch |
| Mounting - Relay | Rail |
| Min. Time Setting - Timer | 0.5 sec |
| Contact Form - Relay | DPDT |
| Max. Time Setting - Timer | 4 days 4 hr |
| Power Consumption - Relay | 2 W, 6 VA |
| Socket | Not Applicable |
| Body Height - Relay | 3.43 in |
| Electrical Connection | Screw Clamp |
| Status Indicator | LED |
| Body Width - Relay | 1.38 in |
| Contact Material | Silver Alloy |
| Hz - Electrical | 50 Hz, 60 Hz |
| Body Depth - Relay | 2.36 in |
| Adjustment Method | Rotary Dip Switch |
| Standards | CE Certified, CSA Certified, cULus Listed, TUV Certified |
| Contact Form | DPDT |
| Number of Functions | 7 |
| Overall Height - Relay | 3.43 in |
| Item | Multi-Function Time Delay Relay |
| Input Voltage | 24 to 240V AC/DC |
| Series | TR |
| Depth | 2.56 in |
| Number of Pins | 16 |
| Weight | 3.84 oz |
| IP Rating | IP40 |
| Sealing | Enclosed |
| Frequency | 50/60 Hz |
| Delay Function | Flasher Pause First, On Delay Control Signal Start, On/Off Delay, Power Triggered, Single Shot Leading or Trailing Edge Voltage Controlled and Control Input, Trailing Edge Off |
| Body Width | 1.38 in |
| Mounting Style | DIN Rail |
| Coil Voltage | 12 to 240V AC/DC |
| Minimum Time Setting | 0.05 sec |
| Current Rating | 8 A |
| Power Consumption | 2 W, 6 VA |
| Minimum Operating Temperature | -13 deg F |
| Overall Depth | 3.43 in |
| Maximum Operating Temperature | 131 deg F |
| Body Depth | 2.36 in |
| Electrical Operating Durability | 200,000 |
| Operating Time Accuracy | Less Than0.5% +/-5ms |
| Maximum Time Setting | 100 hr |
| Contact Rating (AC) | 8 A @ 250 V |
| Base Shape | Square |
| Number of Delay Functions | 6 |
| Body Height | 3.43 in |
| Mechanical Operating Durability | 20,000,000 |
| Mounting method | Compact DIN rail |
| Time Delay | 0.05 seconds-100 hours |
| Certifications | CSA Certified;cULus Listed |
| Product Name | Eaton TR timing relay |
| Compliances | CE Marked;TUV |
| Functions | ON/OFF delay;Single shot leading or trailing edge voltage controlled and control input;Power triggered;Trailing edge OFF;ON delay control signal start;Flasher-pause first |
| Frequency Rating | 50-60 Hz |
| Enclosure Material | Self-extinguishing plastic |
| Package Quantity | 1 |
