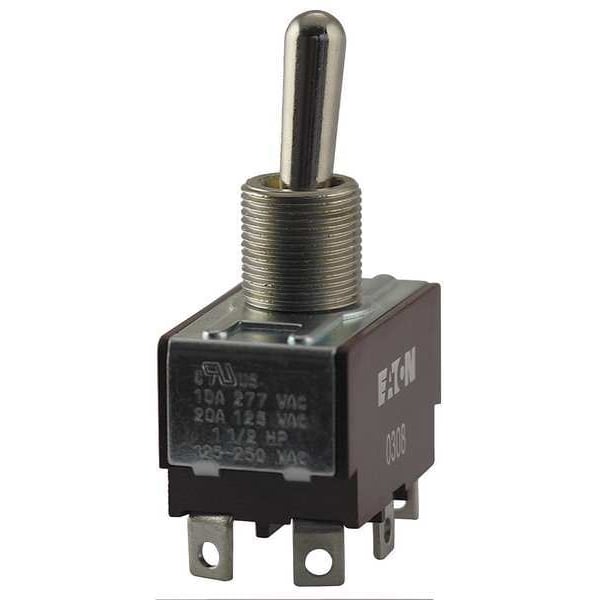

Interruptor de palanca, DPDT, 6 Conexiones, Encendido/Apagado/Encendido, 1 1/2 hp, 10A @ 277V AC, 20A @ 125V AC
| Switch Function | On, On/Off |
|---|---|
| Contact Form | DPDT |
| HP | 1 1/2 hp |
| Amps | 20A @ 125VAC, 10A @ 277VAC |
| Number of Connections | 6 |
| Stem Length | 0.47 in |
| Terminals | Spade |
| Actuator Length | 0.64 in |
| Includes | Panel Mounting |
| Item | Toggle Switch |
| Mounting Hole | 1/2 in dia |
| DC Contact Rating | 15 A @ 28 V |
| Actuator Color | Silver |
| Stem Dia. and Thread Size | 0.500 in |
| AC Contact Rating | 10 A @ 277 V, 15 A @ 28 V, 20 A @ 125 V |
| Stem Color | Silver |
| Standards | RoHS, UL Listed |
| IP Rating | IP40 |
| Product Type | Toggle Switch |
| Series | X |
| Number Of Poles | 2 |
| Circuit position up | On |
| Product Width | 0.64 in |
| Voltage Rating | 125 V, 277 V |
| Type | Switch |
| Circuit position center | Off |
| Functions | 2PDT |
| Certifications | UL Recognized |
| Circuit position down | On |
| Product Length/Depth | 1.14 in |
| Amperage Rating | 20A, 10A |
| Product Height | 2.34 in |
| Metal Actuator Finish | Nickel |
| Overall Depth | 1.3 in |
| Stem Thread Size | 15/32-32 NS-2A |
| Horsepower | 3/4 hp |
| Overall Width | 0.74 in |
| Stem Diameter | 1/2 in |
| Terminal Connection Type | Spade Terminals |
| Number of Positions | 3 |
| Operating Temperature - Minimum | 32 deg F |
| Overall Height | 2.24 in |
| Switch Function Configuration | On, On/Off |
| Mounting Hole Diameter | 0.47 in |
| Operating Temperature - Maximum | 149 deg F |
| Package Quantity | 1 |
