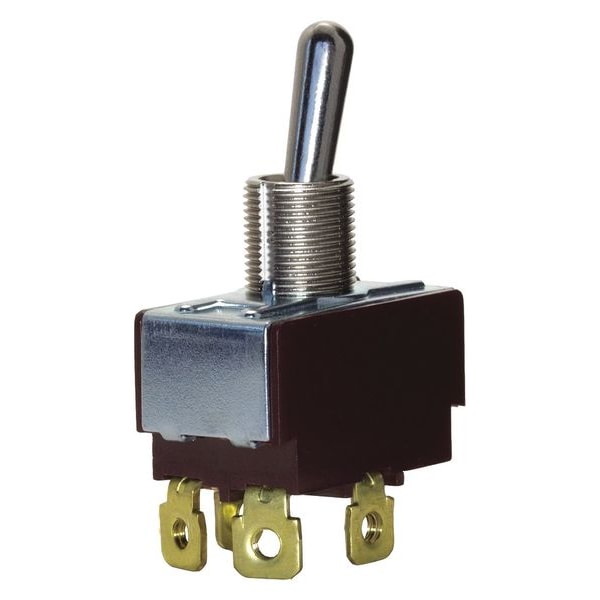

Interruptor de palanca, DPST, 4 conexiones, encendido/apagado, 3/4 hp, 10A @ 250V AC, 20A @ 125V AC
| Switch Function | On/Off |
|---|---|
| Contact Form | DPST |
| HP | 3/4 hp |
| Amps | 20A @ 125VAC, 10A @ 250VAC |
| Number of Connections | 4 |
| Stem Length | 0.47 in |
| Terminals | Screw |
| Actuator Length | 0.68 in |
| Item | Toggle Switch |
| AC Contact Rating | 10 A @ 250 V, 20 A @ 125 V |
| Stem Color | Silver |
| Includes | Panel Mounting |
| Actuator Color | Silver |
| Standards | CSA, RoHS, UL Listed |
| Stem Dia. and Thread Size | 0.500 in |
| Mounting Hole | 1/2 in dia |
| Product Type | Toggle Switch |
| Series | 7800 |
| Certifications | UL Recognized |
| Circuit position down | Off |
| Product Width | 3/4 in |
| Bushing Length | 0.469 in |
| Product Length/Depth | 1.312 in |
| Lever length | 0.688 in |
| Product Height | 1.2 in |
| Circuit number | C |
| Horsepower | 1 hp |
| Circuit position center | None |
| Circuit position up | On |
| Amperage Rating | 20A at 125V, 10A at 250V |
| Throw type | Single-throw |
| Number Of Poles | 2 |
| Stem Diameter | 0.47 in |
| Switch Function Configuration | On, None, Off |
| Number of Positions | 3 |
| Mounting Hole Diameter | 1/2 in |
| Features | Rotate Keyway 180 deg |
| Terminal Connection Type | Screw Terminals |
| Operating Temperature - Minimum | 0 deg F |
| Metal Actuator Finish | Silver |
| Operating Temperature - Maximum | 150 deg F |
| Package Quantity | 1 |
