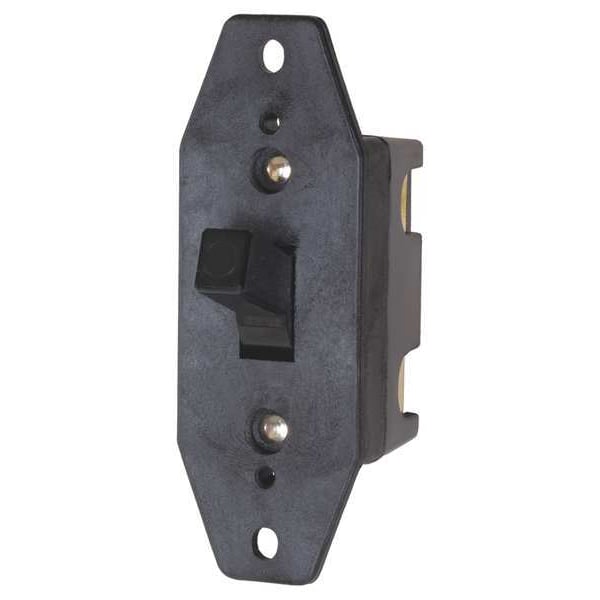

Interruptor de Palanca, DPST, 4 Conexiones, Encendido/Apagado, 5 hp, 40A @ 600V AC
| Switch Function | On/Off |
|---|---|
| Contact Form | DPST |
| HP | 5 hp |
| Item | Toggle Switch |
| Number of Connections | 4 |
| Number of Poles | 2 |
| Terminals | Screw |
| Actuator Length | 0.68 in |
| AC Contact Rating | 40 A @ 600 V |
| Special Features | 40 Amp High Capacity Switch |
| Actuator Color | Black |
| Mounting Hole | 2-1/4 in dia |
| Includes | Panel Mounting |
| Standards | UL Listed |
| Stem Color | Black |
| Product Type | Toggle Switch |
| Features | Factory Tested 20,000 Cycles |
| Certifications | UL Recognized |
| Product Height | 3.812 in |
| Horsepower | 5 hp |
| Amperage Rating | 40A at 600V |
| Product Length/Depth | 1.406 in |
| Metal Actuator Finish | Nickel |
| Overall Height | 3.81 in |
| Mounting Hole Diameter | 2-1/4 in |
| Switch Function Configuration | On/Off |
| Overall Depth | 2.03 in |
| Terminal Connection Type | Screw Terminals |
| Number of Positions | 2 |
| Overall Width | 1.4 in |
| Package Quantity | 1 |
