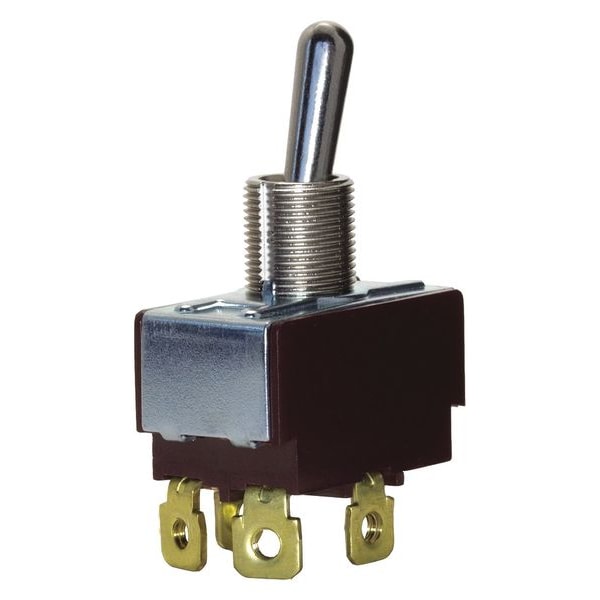

Interruptor basculante, DPST, 6 conexiones, Encendido/Apagado, 3/4 hp, 10A @ 250V AC, 15A @ 125V AC
| Switch Function | On |
|---|---|
| Contact Form | DPST |
| HP | 3/4 hp |
| Actuator Style | Bat |
| Amps | 15A @ 125 VAC, 10A @ 250VAC |
| Number of Connections | 6 |
| Stem Length | 0.47 in |
| Terminals | Screw |
| Actuator Length | 0.56 in |
| Standards | CSA, RoHS, UL Listed |
| Stem Color | Silver |
| Includes | Panel Mounting |
| AC Contact Rating | 10 A @ 250 V, 15 A @ 125 V |
| Item | Toggle Switch |
| Actuator Color | Silver |
| Mounting Hole | 1/2 in dia |
| Stem Dia. and Thread Size | 0.500 in |
| Product Type | Toggle Switch |
| Series | 7500 |
| Product Height | 1.2 in |
| Lever length | 0.563 in |
| Product Length/Depth | 1.312 in |
| Amperage Rating | 15A at 125V, 10A at 250V |
| Certifications | CSA Certified |
| Throw type | Double-throw |
| Product Width | 3/4 in |
| Circuit position center | None |
| Bushing Length | 0.469 in |
| Circuit number | D |
| Circuit position down | On |
| Circuit position up | On |
| Horsepower | 3/4 hp |
| Number Of Poles | 2 |
| Overall Height | 2.07 in |
| Operating Temperature - Maximum | 150 deg F |
| Number of Positions | 3 |
| Overall Depth | 1.22 in |
| Terminal Connection Type | Screw Terminals |
| Stem Diameter | 0.47 in |
| Mounting Hole Diameter | 1/2 in |
| Stem Thread Size | 15/32-32 |
| Features | Rotate Keyway 180 deg |
| Operating Temperature - Minimum | 0 deg F |
| Overall Width | 0.62 in |
| Switch Function Configuration | On, None |
| Metal Actuator Finish | Silver |
| Package Quantity | 1 |
