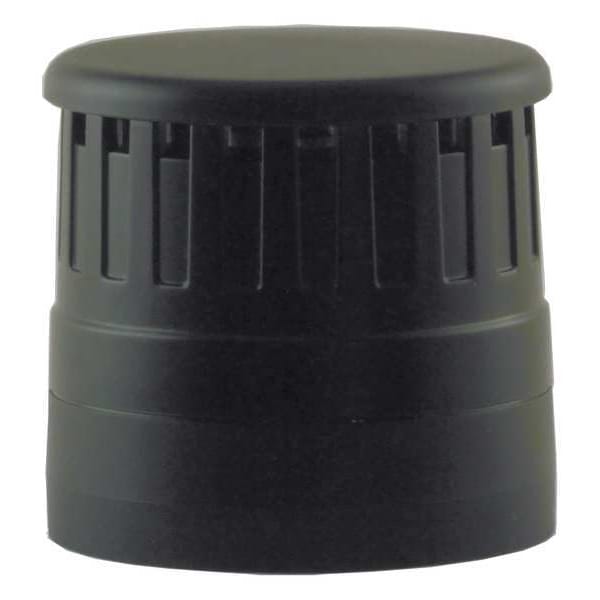

Tower Light Sounder Tier, 24VAC/DC, 70mm
| Item | Tower Light Sounder Tier |
|---|---|
| Standards | CE, CSA C22.2 No. 14-10, CSA C22.2 No. 94-91, CSA Certified, CSA Class No. NKCR7, cULus Listed, IEC Rated, UL 508, UL File E29184, UL Listed |
| Voltage | 24V AC/DC |
| Diameter | 70 mm |
| Housing Material | Polycarbonate |
| Current Drawn | 0.92 A |
| Includes | Plug Together Assembly |
| Height | 2.8 in |
| Color | Black |
| For Use With | SL7 Tower Lights |
| Tower Light Series | SL4 |
| Length | 2.88 in |
| Operating Temp. | -22 to 140 deg F |
| Watts | 22 |
| Width | 2.88 in |
| NEMA Rating | NEMA 13, NEMA 4, NEMA 4X |
| Sound Modes | Pulse, Continuous |
| Sound Level | 100 dB |
| Wattage | 22 W |
| Overall Height | 3 in |
| Lamp Watts | 22 W |
| Volume Selection | Selectable Volume |
| For Hazardous Location | Not Applicable |
| Operating Current | 92 A |
| Overall Length | Not Applicable |
| Number of Sound Patterns | 2 |
| Overall Width | Not Applicable |
| Compatible Series | SL7 |
| Sound Operating Mode | Intermittent |
| Sound Style | Tone |
| Overall Diameter | 2-3/4 in |
| Housing Color | Black |
| For Location | Indoor, Outdoor |
| Sound Volume - Minimum | 100 dBA |
| IP Rating | IP66 |
| Sound Volume - Maximum | 100 dBA |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
