Dos bloques de contacto de autorregulación NC.
| Item | Potentiometer |
|---|---|
| Size | 22.5 mm |
| Bezel | Silver |
| IP Rating | IP67, IP69K |
| Number of positions | 2 |
| Series | M22 |
| Button color | Black |
| Actuator | Rotary |
| Product Height | 1-1/2 in |
| Certifications | CSA Certified |
| Product Length/Depth | 7 in |
| Compliances | Bureau Veritas |
| Actuator function | Momentary |
| Product Width | 5 in |
| Operating cycles | 100000 |
| Inscription | I, 0 |
| Illumination | Non-illuminated |
| Type | Selector switch |
| Environmental rating | IP66, NEMA 4X, NEMA 13 |
| Enclosure | NEMA 4X;NEMA 13 |

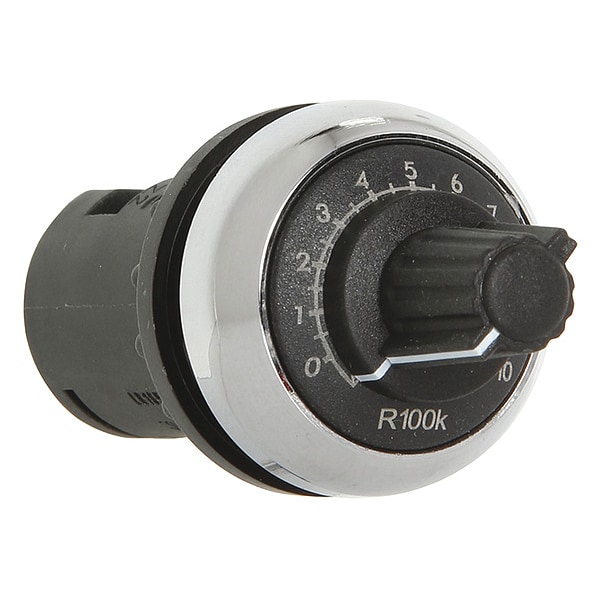

| Product Name | Eaton M22 potentiometer |
| Overall Height | 1-1/2 in |
| Power Rating | 0.5 W |
| Knob Style | Oversized |
| Resistance Properties | Corrosion Resistant |
| Overall Depth | 7 in |
| Operating Temperature - Maximum | 158 Degrees F |
| Includes Dial Plate | Dial Plate Included |
| NEMA Enclosure Rating | 13, 4X |
| Resistance Rating | 47,000 ohm |
| Voltage Rating - Maximum | 240 V AC |
| Panel Cutout Diameter | 22 mm |
| Operating Temperature - Minimum | -13 deg F |
| Overall Width | 5 in |
| Current Rating | 8 mA |
| Package Quantity | 1 |
