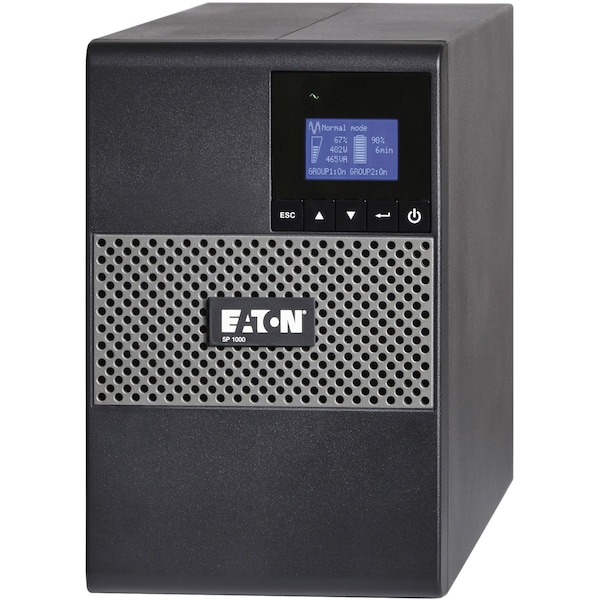

UPS System, 1000VA, Line Interactive, Out: 120V AC In: 120V AC
| Item | UPS System |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 1,000 VA |
| Mounting | Tower |
| Wattage | 770 W |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Backup Time (Half/Full Load) | 12 min/5 min |
| Number of Outlets | 8 |
| NEMA Receptacle Configuration | 5-15R |
| Housing Color | Black, Silver |
| Battery Type | Sealed Lead Acid |
| Width | 13.6 in |
| Standards | IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B |
| Form factor | tower |
| Package Contents | 5P UPS|User manual CD|Intelligent Power Software Suite CD|Quick start guide|USB cable|RS-232 serial cable |
| Extended Battery Capability | None; See Eaton 5PX UPS for extended runtimes options |
| Efficiency | 0.97 |
| Battery replacement | User replaceable |
| Product Height | 9.1 in |
| Software Compatibility | Eaton Intelligent Power Manager |
| Input voltage range | 89-151 Vac (adjustable to 70-153 Vac) |
| Nominal Frequency | 50-60 Hz |
| Input Power Factor | 0.77 |
| Communication | RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included |
| Battery management | ABM technology |
| Relative Humidity | 0-90% non-condensing |
| BTU Rating | 106 (Online), 500 (Battery) |
| Output Voltage Range | 102-132 Vac |
| Expansion Slots | One slot; Gigabit Network Card (Network-M2) is optional |
| Input connection | 5-15P |
| Product Length/Depth | 13.6 in |
| Input Cord Length | 6 ft |
| Temperature range | 0° to 35°C |
| Input Frequency Range | 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode |
| Altitude | Up to 10,000 ft (3000m) without de-rating |
| Noise level | <45 dB at 1 meter |
| Package Quantity | 1 |
