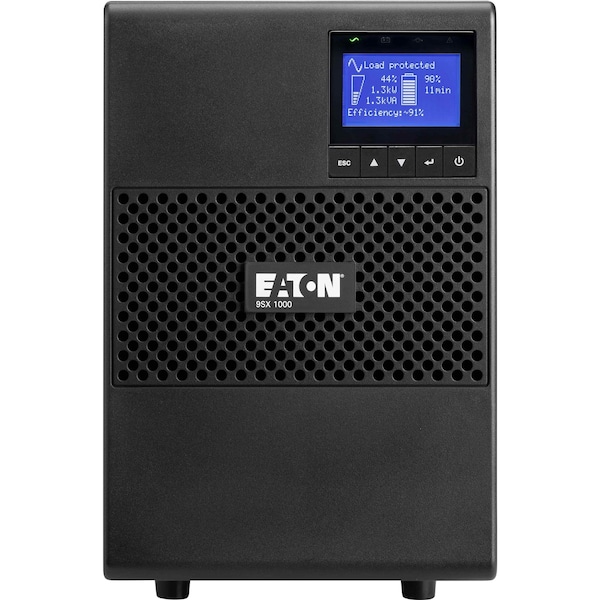

UPS System, 1000VA, Online/Double Conversion, Out: 208V AC In: 208V
| Item | UPS System |
|---|---|
| UPS Type | Online, Double Conversion |
| Power Rating | 1,000 VA |
| Mounting | Tower |
| Wattage | 900 W |
| Input Voltage | 208V |
| Output Voltage | 208V AC |
| Backup Time (Half/Full Load) | 16 min/6 min |
| Number of Outlets | 6 |
| Standards | cULus Listed |
| Width | 15.1 in |
| NEMA Receptacle Configuration | C13 |
| Input Frequency Range | 60 Hz: 50 to 70 Hz, 50 Hz: 40 to 60 Hz |
| Input Power Factor | >.99 |
| Battery management | ABM technology |
| Product Length/Depth | 15.1 in |
| Output Power Factor | 0.9 |
| Compliances | FCC Compliant |
| Output Frequency | 50/60 Hz |
| Temperature range | 0° to 40°C |
| Form factor | tower |
| Input connection | C14 |
| Extended Battery Capability | Yes |
| Communication | (1) MiniSlot|(1) USB port|(1) Serial RS-232 port|(1) RPO/ROO/Signal input terminal|(1) mini-terminal block for output relay |
| Expansion Slots | (1) Mini-Slot (MS) expansion port. Optional connectivity cards may be ordered separately.|- Gigabit Web/SNMP card part number: NETWORK-M2|- Modbus card part number: MODBUS-MS|- Relay card part number: RELAY-MS |
| Battery replacement | Hot-swappable internal batteries and extended battery modules |
| VA rating | 1,000 VA |
| Feed type | 1 |
| Product Height | 9.9 in |
| Output Waveform | True sine wave |
| Construction type | Free standing model |
| Internal bypass | Yes |
| Input Cord Length | 8 ft |
| Package Contents | 9SX 1000 VA UPS|Quick start guide|(2) IEC C13-C14 jumpers 1.8m|RS-232 serial cable|USB cable |
| User interface | 5-button graphical user interface |
| Potential free switch contact | Yes |
| Package Quantity | 1 |
