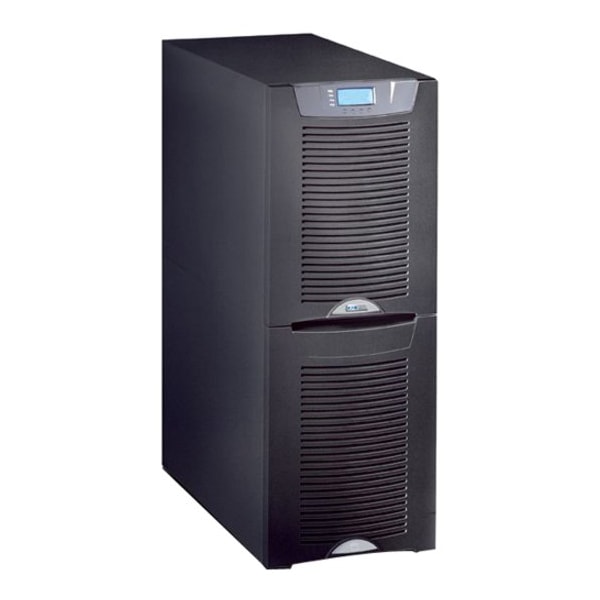

UPS System, 12kVA, In: 200/240V AC
| Item | UPS System |
|---|---|
| Power Rating | 12 kVA |
| Wattage | 10.8 kW |
| Input Voltage | 200/240V AC |
| Backup Time (Half/Full Load) | 42 min/18 min |
| Battery Type | Sealed, lead-acid, maintenance-free |
| Height | 47.8 in |
| Width | 33.7 in |
| Battery Quantity | 64 |
| Extended Battery Capability | Yes, via EBM |
| Output Waveform | Sine Wave |
| Enclosure | Nema 1 |
| Package Contents | 1 ready-to-go UPS; Software Suite CD; User Guide |
| Software Compatibility | Bundled Software Suite CD |
| Communication | (1) RS-232, (1) relay contact, (1) REPO, (2) environmental input |
| Expansion Slots | (2) X-Slot communication bays |
| Output Voltage Range | ±1% Static;±5% dynamic at 100% resistive load |
| Phase (Input) | 200V-240 VAC |
| Phase (Output) | 100/200, 110/220, 120/240, 120/208, 127/220 |
| Nominal Frequency | -15%, +10% |
| Output Frequency | 50/60 Hz |
| Input Frequency Range | 45 to 65 Hz |
| Output Power Factor | 0.9 |
| Input Power Factor | P.F >0.99 typical, >0.96 frequency converter |
| Efficiency | 90% typical |
| Ethernet Interface | Yes, via Gateway card |
| User interface | LCD Display with blue backlight |
| Battery Rating | 9 Ah |
| Package Quantity | 1 |
