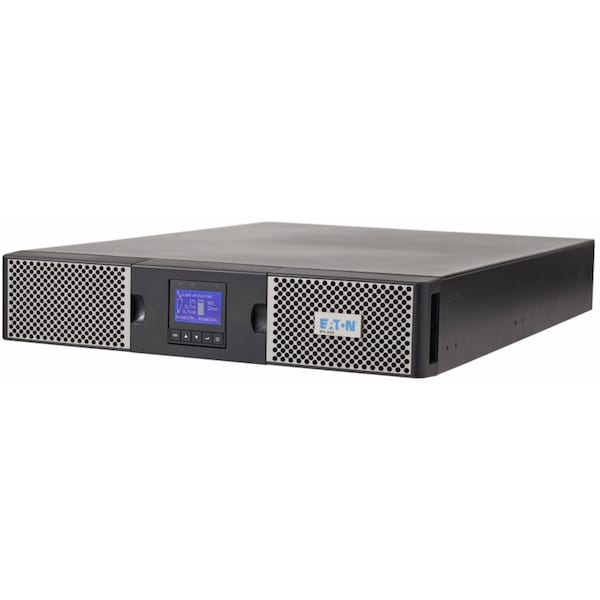

UPS System, 1500VA, Online/Double Conversion, Out: 120V AC In: 120V AC
| Item | UPS System |
|---|---|
| UPS Type | Online, Double Conversion |
| Power Rating | 1,500 VA |
| Mounting | Tower, Rack |
| Wattage | 1,350 W |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Backup Time (Half/Full Load) | 16 min/5 min |
| Number of Outlets | 8 |
| NEMA Receptacle Configuration | 5-15R |
| Standards | cULus Listed |
| Housing Color | Black, Silver |
| Width | 17.7 in |
| Battery Type | Sealed Lead Acid |
| Input Power Factor | >0.99 typical |
| Rack size | 2 U |
| User interface | Graphical display, 5-button programmable menu |
| Includes network card | Yes |
| Product Length/Depth | 17.7 in |
| Expansion Slots | (1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-M2) included |
| Noise level | <40 dB at 1 meter |
| Relative Humidity | 0-96% non-condensing |
| Software Compatibility | Intelligent Power Software Suite |
| Extended Battery Capability | Add up to 4 extended battery modules (EBM). Part number 9PXEBM48RT |
| Output Waveform | True sine wave |
| Input Frequency Range | 60 Hz: 50 to 70 Hz, 50 Hz: 40 to 60 Hz |
| Compliances | IEC 62040-2 Cat C1 |
| Package Contents | 9PX1500RTN UPS|Gigabit Network Card (Network-M2)|4-post rail kit|Safety manual|User manual|Tower pedestals|RS-232 serial cable|USB cable|Intelligent Power Software Suite CD |
| Internal bypass | Yes |
| Form factor | tower, Rack |
| Battery management | ABM technology |
| Rack Mounting Kit | Yes |
| Altitude | 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C) |
| Efficiency | 0.9 |
| Product Height | 3.4 in |
| Output Power Factor | 0.9 |
| Ethernet Interface | Yes |
| Communication | Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot |
| Input Cord Length | 8 ft |
| VA rating | 1,500 VA |
| Battery replacement | Hot-swappable internal batteries and extended battery modules |
| Temperature range | 0° to 40°C |
| BTU Rating | 512 (Online), 897 (Battery) |
| Package Quantity | 1 |
