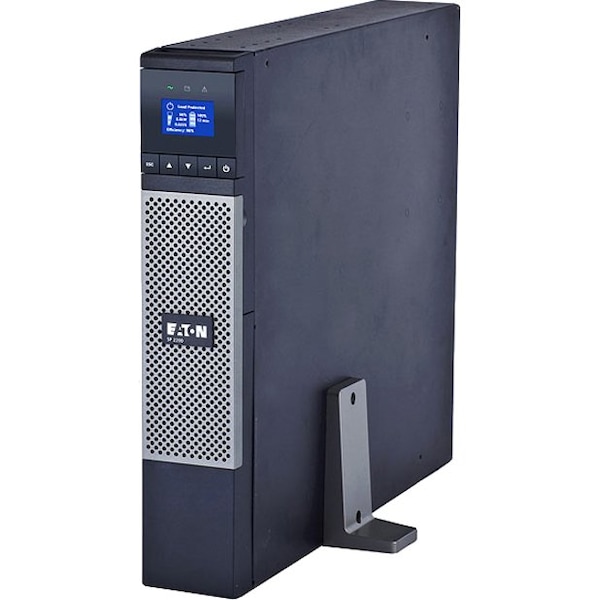

UPS System, 3000VA, Line Interactive, Out: 120V AC In: 120V AC
| Item | UPS System |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 3,000 VA |
| Mounting | Tower |
| Wattage | 2,700 W |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Backup Time (Half/Full Load) | 10 min/4 min |
| Number of Outlets | 7 |
| Housing Color | Black, Silver |
| Width | 25-1/2 in |
| Battery Type | Sealed Lead Acid |
| NEMA Receptacle Configuration | 5-20R, L5-30R |
| Standards | cUL Listed |
| Input Frequency Range | 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
| Software Compatibility | Eaton Intelligent Power Manager |
| Expansion Slots | One slot; Gigabit Network Card (Network-M2) is optional |
| Input connection | L5-30P |
| Input Cord Length | 10 ft |
| Compliances | FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b |
| Package Contents | 5P UPS|User manual CD|Intelligent Power Software Suite CD|Quick start guide|USB cable|RS-232 serial cable |
| Input voltage range | 89-151 Vac (adjustable to 70-153 Vac) |
| Nominal Frequency | 50-60 Hz |
| BTU Rating | 305 (Online), 2,047 (Battery) |
| Battery management | ABM technology |
| Altitude | Up to 10,000 ft (3000m) without de-rating |
| Relative Humidity | 20-95% non-condensing |
| Input Power Factor | 0.9 |
| Battery replacement | User replaceable |
| Extended Battery Capability | None; See Eaton 5PX UPS for extended runtimes options |
| Output Frequency | 50/60 Hz |
| Output Voltage Range | 102-132 Vac |
| Efficiency | 0.97 |
| Product Length/Depth | 25-1/2 in |
| Product Height | 17.4 in |
| Noise level | <50 dB at 1 meter |
| Temperature range | 0° to 40°C |
| Form factor | tower |
| Communication | 1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) |
| Package Quantity | 1 |
