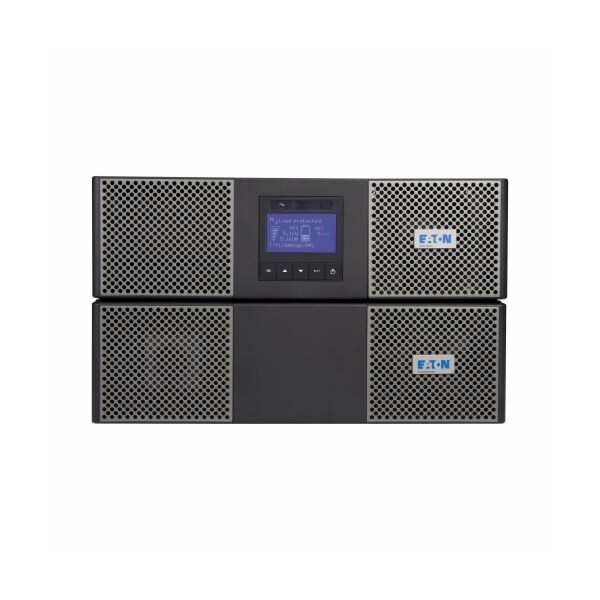

UPS System, 3000VA, Online/Double Conversion, Out: 208V AC In: 208V AC
| Item | UPS System |
|---|---|
| UPS Type | Online, Double Conversion |
| Power Rating | 3,000 VA |
| Mounting | Tower, Rack |
| Wattage | 3,000 W |
| Input Voltage | 208V AC |
| Output Voltage | 208V AC |
| Backup Time (Half/Full Load) | 19 min/7 min |
| Number of Outlets | 21 |
| Battery Type | Sealed Lead Acid |
| Standards | cULus Listed |
| Width | 28.4 in |
| NEMA Receptacle Configuration | L6-30R, 5-20R, L6-20R |
| Housing Color | Black, Silver |
| Output Power Factor | 1 |
| User interface | Graphical display, 5-button programmable menu |
| Efficiency | 0.92 |
| Communication | Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot |
| Battery replacement | Hot-swappable internal batteries and extended battery modules |
| Form factor | tower, Rack |
| Internal bypass | Yes |
| Package Contents | 9PX3K3U 3 kVA UPS|9PXTFMR5 120V Stepdown Transformer|Gigabit Network Card (Network-M2)|4-post rail kit|User manual|Quick start guide|Tower pedestals|Intelligent Power Software Suite CD|RS-232 serial cable|USB cable|Cable gland for hardwire connection|Phillips head screw driver |
| Relative Humidity | 0-95% non-condensing |
| Software Compatibility | Intelligent Power Software Suite |
| Input Frequency Range | 60 Hz: 50 to 70 Hz, 50 Hz: 40 to 60 Hz |
| BTU Rating | 794 (Online), 1,623 (Battery) |
| Temperature range | 0° to 40°C |
| VA rating | 3,000 VA |
| Noise level | <45 dB at 1 meter |
| Product Height | 10.2 in |
| Expansion Slots | (1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-M2) included |
| Extended Battery Capability | Add up to 4 extended battery modules (EBM). Part number 9PXEBM180RT |
| Altitude | <1000m for nominal power, 10% power degrading every 1000m (up to 3000m) |
| Input connection | L6-30P |
| Input Cord Length | 6 ft |
| Includes network card | Yes |
| Battery management | ABM technology |
| Rack size | 6 U |
| Ethernet Interface | Yes |
| Input Power Factor | >0.99 typical |
| Output Waveform | True sine wave |
| Product Length/Depth | 28.4 in |
| Rack Mounting Kit | Yes |
| Compliances | CISPR22 Class A / FCC part 15 Class A |
| Package Quantity | 1 |
