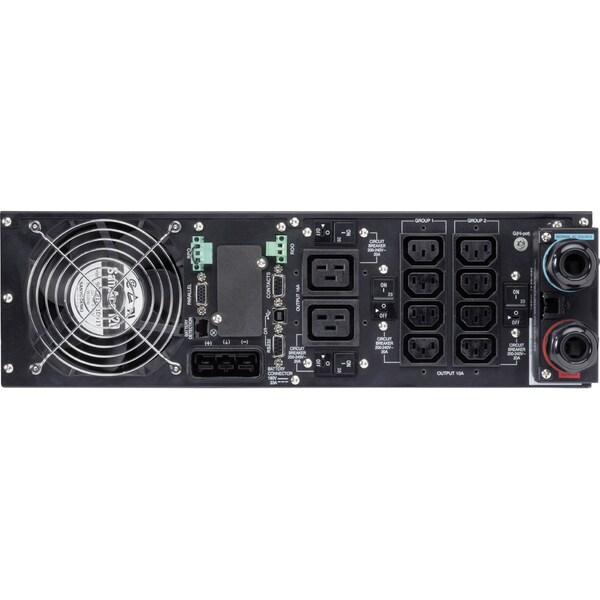

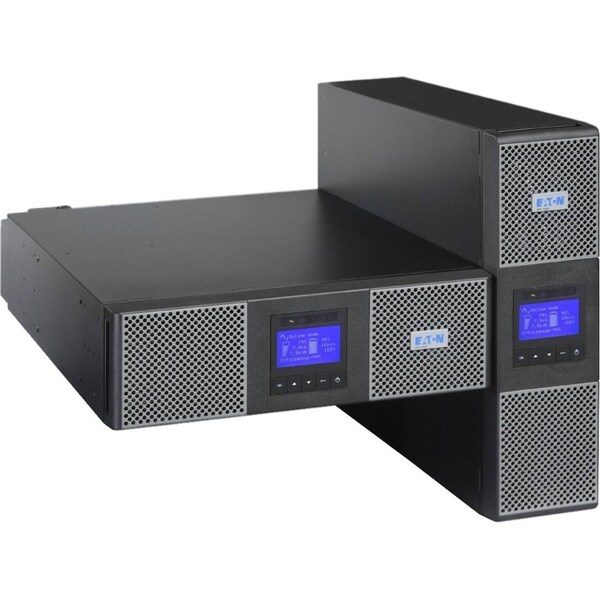

UPS System, 8kVA, Online/Double Conversion, Out: 120/208V AC In: 120/208V AC
| Item | UPS System |
|---|---|
| UPS Type | Online, Double Conversion |
| Power Rating | 8 kVA |
| Mounting | Tower, Rack |
| Wattage | 7.2 kW |
| Input Voltage | 120/208V AC |
| Output Voltage | 120/208V AC |
| Backup Time (Half/Full Load) | 16 min/7 min |
| Outlet Type | Hardwired |
| Number of Outlets | 3 |
| Housing Color | Black, Silver |
| Width | 27.6 in |
| Battery Type | Sealed Lead Acid |
| NEMA Receptacle Configuration | L6-30R, L14-30R |
| Standards | NOM |
| Rack size | 6 U |
| Expansion Slots | (1) Mini-Slot (MS) expansion port with Network-MS Web/SNMP card included |
| BTU Rating | 1,848 (Online), 1,848 (Battery) |
| Relative Humidity | 0-95% non-condensing |
| Noise level | <55 dB at 1 meter |
| Product Height | 10.3 in |
| Efficiency | 0.93 |
| Temperature range | 0° to 40°C |
| Altitude | <3000m for nominal power, -5°C temp derating every 500m |
| Battery management | ABM technology |
| Rack Mounting Kit | Yes |
| Ethernet Interface | Yes |
| Input Frequency Range | 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz |
| VA rating | 8 kVA |
| Software Compatibility | Intelligent Power Software Suite |
| Product Length/Depth | 27.6 in |
| Output Waveform | True sine wave |
| Package Contents | 9PX8KSP UPS|4-post rail kit|RS-232 serial cable|USB cable|Intelligent Power Software Suite CD |
| Extended Battery Capability | Add up to 4 extended battery modules (EBM). Part number 9PXEBM360SP |
| Input connection | Hardwired |
| Input Power Factor | >0.99 typical |
| User interface | Graphical display, 5-button programmable menu |
| Includes network card | Yes |
| Output Power Factor | 0.9 |
| Form factor | tower, Rack |
| Battery replacement | Hot-swappable internal batteries and extended battery modules |
| Internal bypass | Yes |
| Communication | Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot |
| Package Quantity | 1 |
