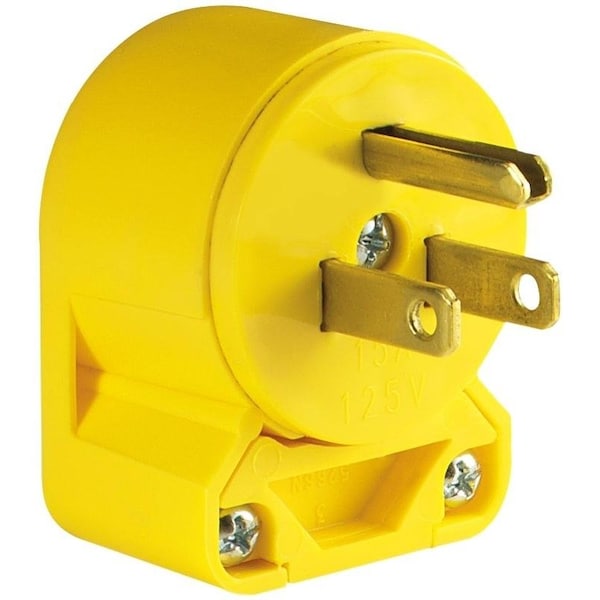

4867ANBOX Electrical Plug, 2 Pole, 15 A, 125 V, NEMA NEMA 515, Yellow
| Item - Plugs and Receptacles | Plug |
|---|---|
| Voltage - Plugs and Receptacles | 125 VAC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| Number of Wires | Three-wire |
| Number of Poles | Two-pole |
| NEMA Rating | WD-6 |
| Special Features | Angled body |
| Standards | C-73; UL |
| Material | Vinyl |
| IP Rating | IP69K, IP66, IP67 |
| Height | 5-1/2 in |
| Width | 4-1/4 in |
| Application | Commercial |
| Wiring Method | Back wire |
| Cord Grip Range (in) | 0.234 to 0.687 |
| Connection Orientation | Straight blade |
| Blade Material | Nickel-Plated Brass |
| Wire Size | #18-12 AWG |
| Environment | Wet |
| Body Material | Rubber, Vinyl |
| Dielectric Strength | Withstands 2000V per UL498 |
| Current Rating | Full Rated Current; 15A |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Housing Material | Santoprene TPV |
| Contact Material | Brass |
| Operating Temp. | -40°C to 60°C |
| Body Style | Angle |
| Connection Type | Screw |
| Grounding | Grounded |
| Flammability | Rated V-2 per UL 94 |
| Housing Color | Yellow |
| Weight (Lbs.) | .098 LB |
| Package Quantity | 1 |
