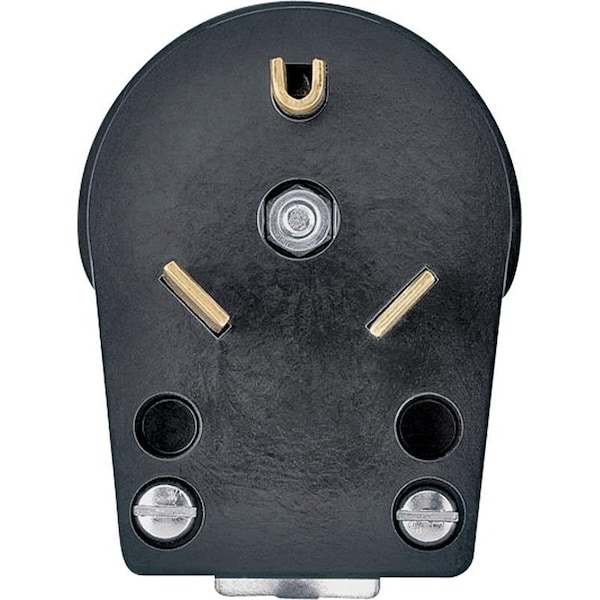

Electrical Plug, 2 Pole, 30 A, 125 V, NEMA NEMA TT30, Black
| Item - Plugs and Receptacles | Plug |
|---|---|
| Voltage - Plugs and Receptacles | 125 VAC |
| NEMA Plug Configuration - Plugs and Receptacles | TT-30P |
| Number of Wires | Three-wire |
| Number of Poles | Two-pole |
| Material | Thermoplastic |
| Special Features | Box packaging |
| Standards | UL |
| NEMA Rating | 5-15P |
| Width | 2.94 in |
| Height | 2-1/4 in |
| Application | Commercial |
| Body Material | Super Tough Nylon |
| Wiring Method | Back wire |
| Weight (Lbs.) | .268 LB |
| Grounding | Grounded |
| Connection Orientation | Straight blade |
| Contact Material | Brass |
| Blade Material | Solid Brass |
| Wire Size | #12-10 AWG |
| Connection Type | Screw |
| Current Rating | 30 A |
| Environment | Dry |
| Body Style | Angle, Power |
| Housing Color | Black |
| Package Quantity | 1 |
