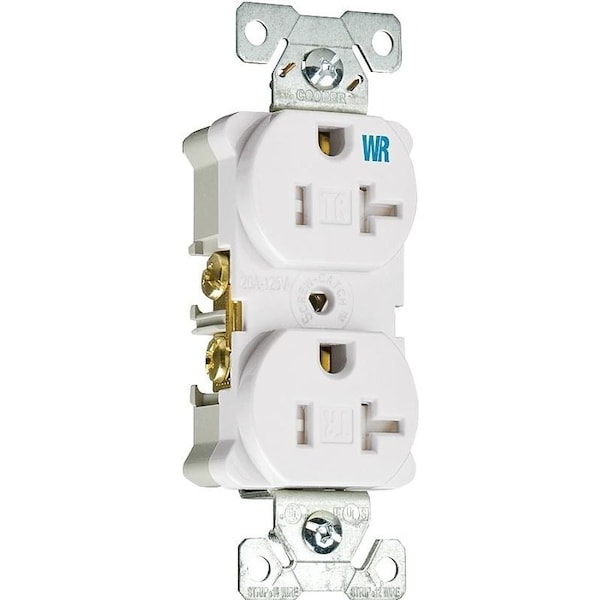

TWRBR20WBXSP Duplex Receptacle, 2 Pole, 20 A, 125 V, Back, Side Wiring, NEMA 520R, White
| Application | Commercial |
|---|---|
| Special Features | Tamper and weather resistant |
| Type | Duplex |
| NEMA Configuration | 5-20R |
| Wiring Method | Back, Side |
| Color | Ivory |
| Mounting Type | Flush |
| Material | Nylon |
| Connection Type | Screw |
| Number Of Poles | Two-pole |
| Amperage Rating | 20A |
| Certifications | cULus Listed |
| Allowable Wire Size | #14-10 AWG |
| Receptacle Type | Duplex |
| Design Type | Straight blade |
| Number Of Wires | Three-wire |
| Voltage Rating | 125 V |
| Product Length/Depth | 1.3 in |
| Device Grade | Commercial specification grade |
| Product Width | 1.09 in |
| Face/Body Material | Impact-resistant nylon face, Glass-filled nylon base |
| Style Type | Standard |
| Product Height | 4.19 in |
| Contact Material | Nickel-Plated Brass |
| Device Type | Receptacle |
| Package Quantity | 1 |
