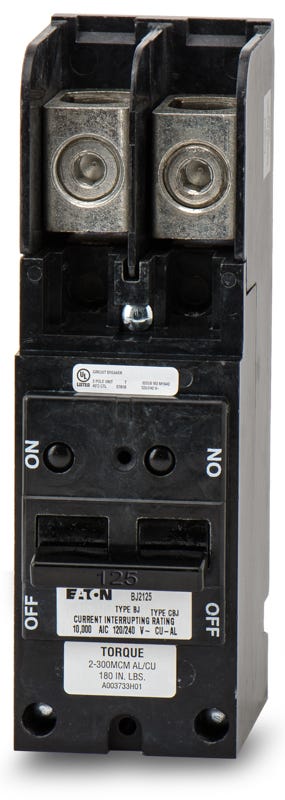

The Eaton BJ2125 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 125 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The BJ2125 has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | BJ |
| Amperage | 125 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Plug-On |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | BJ |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Length (in) | 6.5 |
| Width (in) | 3.5 |
| Height (in) | 2.5 |
| Wire Gauge | AWG 2 to 300KCmil, Cu/Al |
| Temperature Rating | 40 °C |
| Mpn | BJ2125 |
| Upc | 786676367004 |
| Gtin | 786676367004 |
