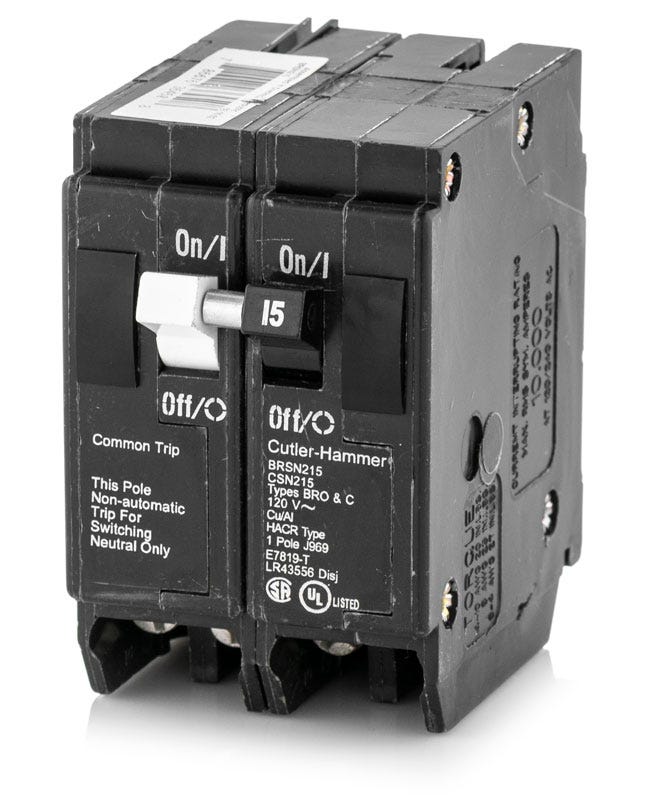

The Eaton BRSN215 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 15 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The BRSN215 has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | BR |
| Amperage | 15 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | BR |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Length (in) | 2.5 |
| Width (in) | 2 |
| Height (in) | 3 |
| Wire Gauge | AWG 14 to AWG 4, Cu/Al |
| For Use With | Type BR Load Centers |
| Circuit Breaker Type | BR |
| Upc | 786676364508 |
| Gtin | 786676364508 |
