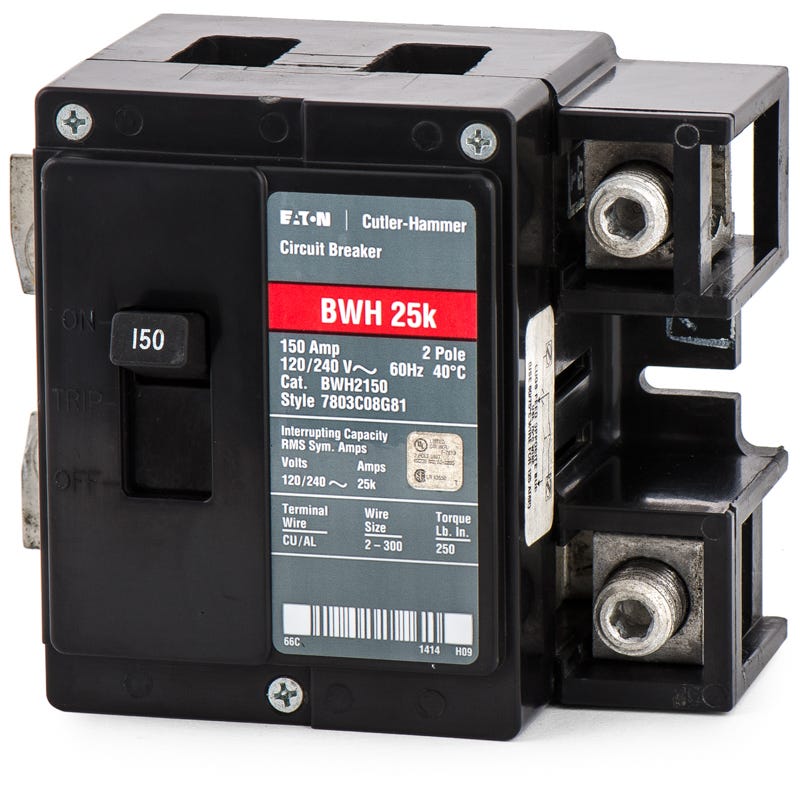

The Eaton BWH2150 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 150 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 25kAIC at 240V. The BWH2150 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | BWH |
| Amperage | 150 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 25kAIC at 240V |
| Frame Type | BWH |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Length (in) | 6.25 |
| Width (in) | 5.25 |
| Height (in) | 5.25 |
| Wire Gauge | AWG 2 to 300KCmil, Cu/Al |
| For Use With | MHM150P, MHM150B, MHR150P, MHR150B |
| Temperature Rating | 40 °C |
| Mpn | BWH2150 |
| Upc | 786676460453 |
| Gtin | 786676460453 |
