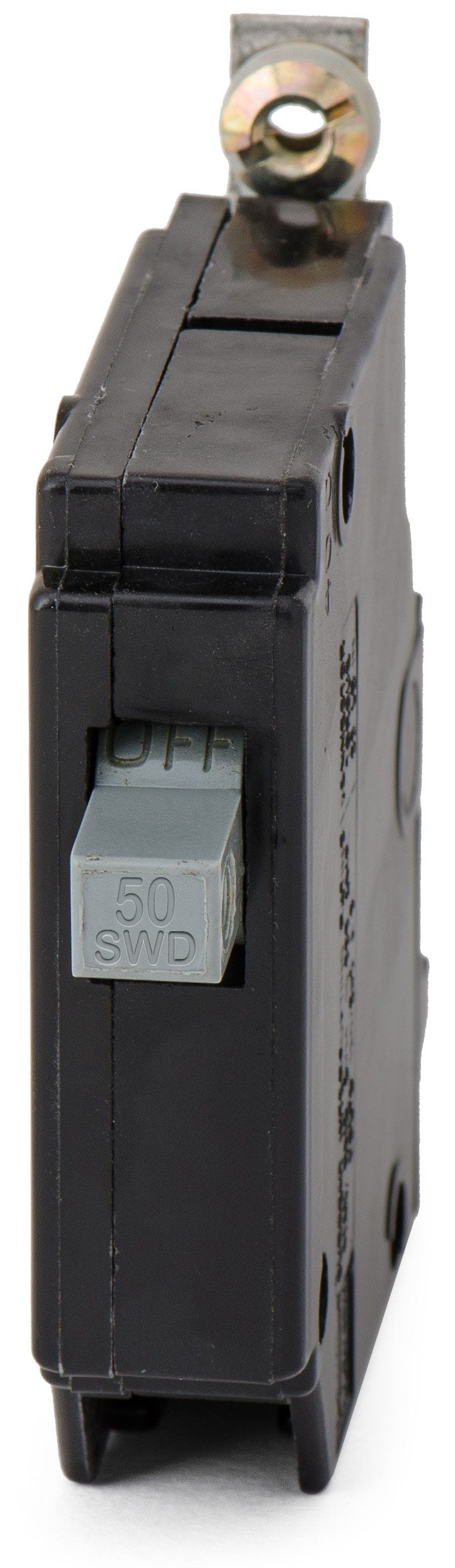

The Eaton CHB150 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 50 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120V. The CHB150 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | CHB |
| Amperage | 50 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | CHB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Length (in) | 3.3 |
| Width (in) | 2.8 |
| Height (in) | 1.5 |
| Wire Gauge | AWG 8 to AWG 4 |
| For Use With | CH Loadcenters |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | CHB |
| Breaker Feature | Standard Interrupting Capacity |
| Mpn | CHB150 |
| Upc | 782113112398 |
| Gtin | 782113112398 |
