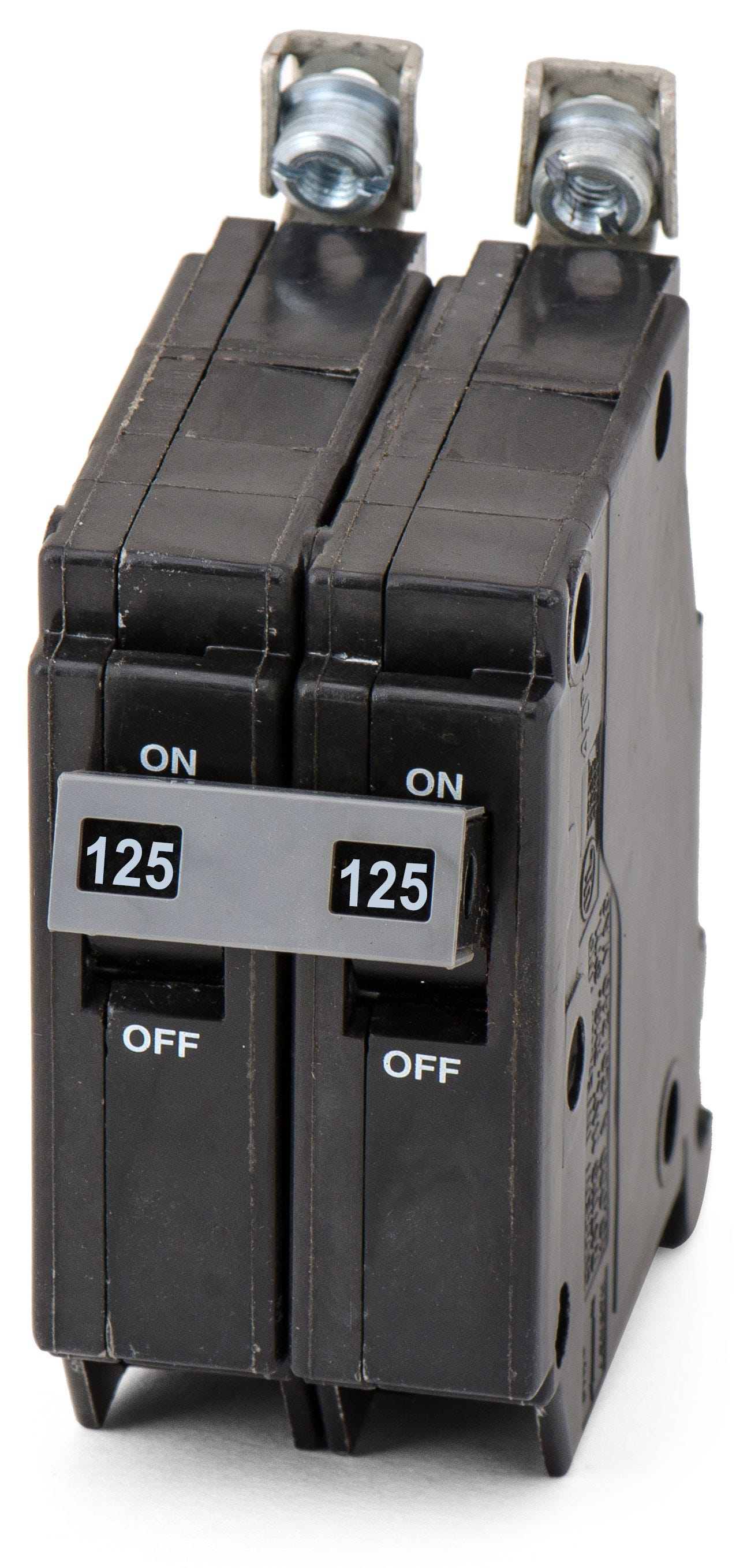

The Eaton/Cutler-Hammer CHB2125 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 125 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The CHB2125 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | CHB |
| Amperage | 125 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | CHB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Length (in) | 3.6 |
| Width (in) | 1.5 |
| Height (in) | 3.4 |
| Wire Gauge | AWG 4 to AWG 1/0 |
| For Use With | CH Load Centers |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | CHB |
| Mpn | CHB2125 |
| Upc | 782113338903 |
| Gtin | 782113338903 |
