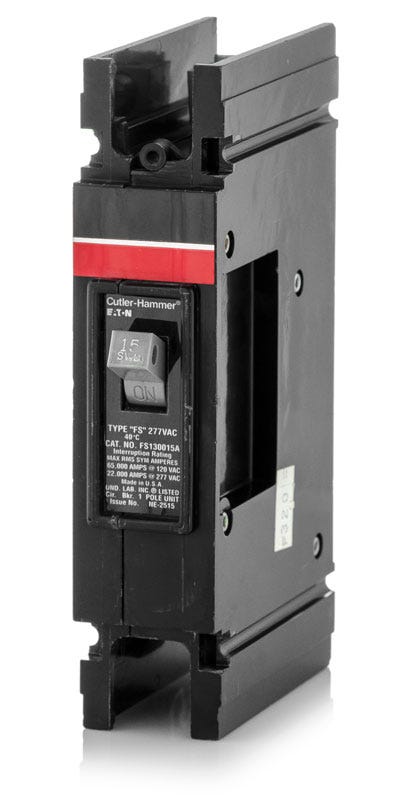

The Eaton FS130015A is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 15 Amps and a voltage rating of 120/277VAC. It has an interrupting rating of 65kAIC at 120V, 22kAIC at 277V. The FS130015A has a feed-thru connection type and includes long time and instantaneous trip functions.
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | FS |
| Amperage | 15 |
| Voltage | 120/277VAC |
| Poles | 1 |
| Phase | 1 |
| Interrupting Rating | 65kAIC at 120V, 22kAIC at 277V |
| Frame Type | FS |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Temperature Rating | 40 °C |
| Breaker Feature | Standard Interrupting Capacity |
