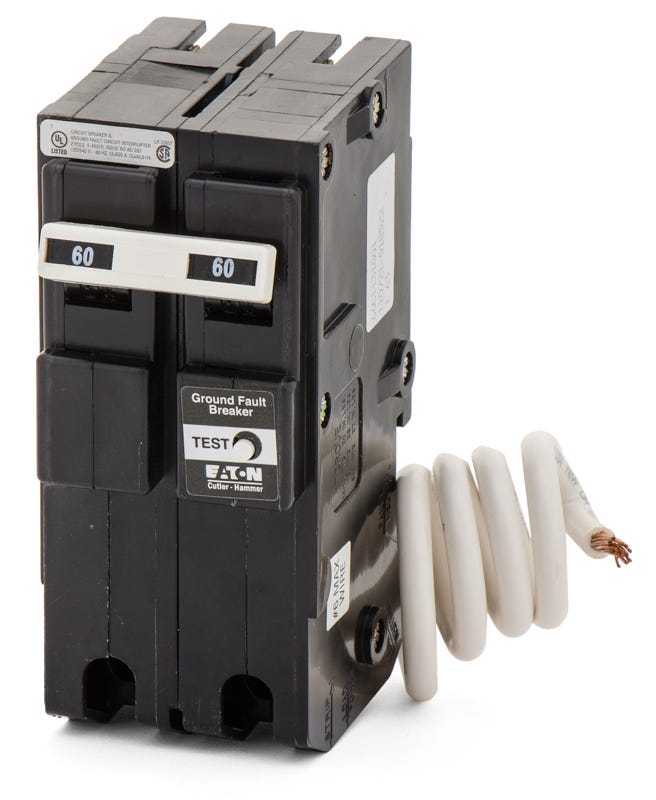

The Cutler Hammer GFCB260 is a 2 Pole molded case ground fault circuit breaker with a current rating of 60 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The GFCB260 has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | GF |
| Amperage | 60 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | BR |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| For Use With | BR Load Centers |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | GFCI |
| Mpn | GFCB260 |
| Upc | 786676008914 |
| Gtin | 786676008914 |
