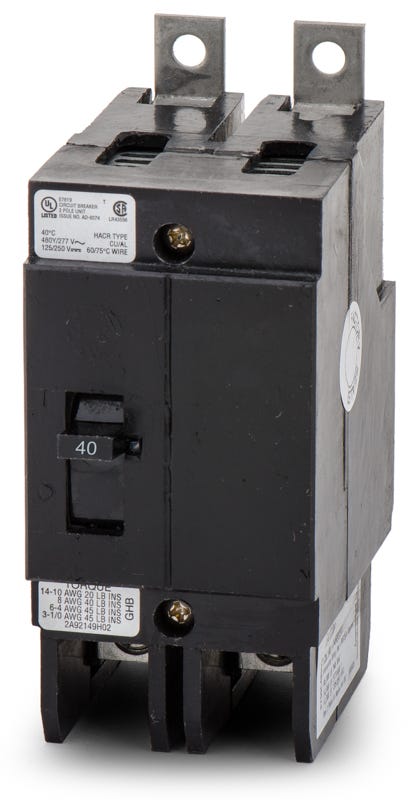

The Eaton/Cutler-Hammer GHB2040 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 40 Amps and a voltage rating of 480Y/277VAC, 125/250VDC. It has an interrupting rating of 14kAIC at 480Y/277VAC, 65kAIC at 240VAC. The GHB2040 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | C |
| Amperage | 40 |
| Voltage | 480Y/277VAC, 125/250VDC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL, CSA |
| Interrupting Rating | 14kAIC at 480Y/277VAC, 65kAIC at 240VAC |
| Frame Type | GHB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Length (in) | 2.63 |
| Width (in) | 2 |
| Height (in) | 4 |
| Circuit Breaker Type | GHB |
| Mpn | GHB2040 |
| Upc | 786679911228 |
| Gtin | 786679911228 |
