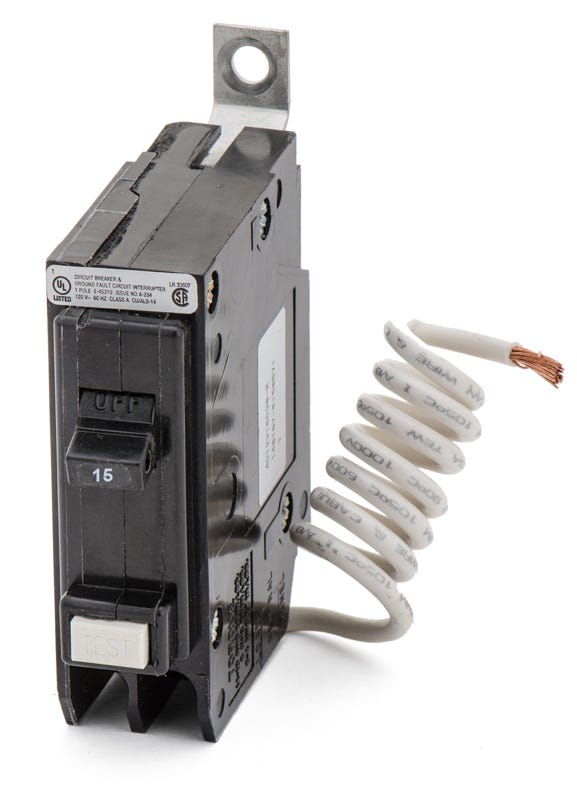

The Eaton QBGF1015 is a 1 Pole molded case ground fault circuit breaker with a current rating of 15 Amps and a voltage rating of 120VAC. It has an interrupting rating of 10kAIC at 120V. The QBGF1015 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | QBGF |
| Amperage | 15 |
| Voltage | 120VAC |
| Poles | 1 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | BAB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Length (in) | 5.1 |
| Width (in) | 3.3 |
| Height (in) | 1.2 |
| Standards | HACR |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | GFCI |
| Breaker Feature | 5 mA Trip Sensitivity |
| Mpn | QBGF1015 |
| Upc | 786679360156 |
| Gtin | 786679360156 |
